Запчасти Case IH SR175 (10.400.BE) - RADIATOR & COOLER (10) - ENGINE

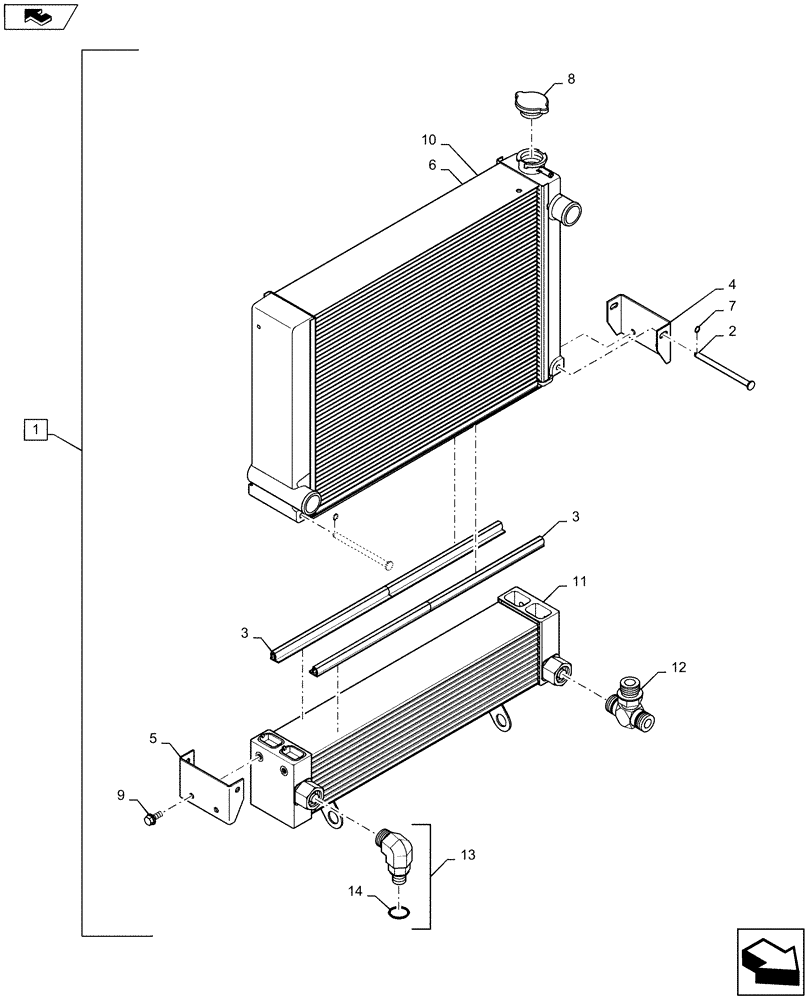

Схема запчастей Case IH SR175 - (10.400.BE) - RADIATOR & COOLER (10) - ENGINE
10
3
4
11
1
3
6
2
12
home
13
9
7
5
8
14

Артикул

Название

Примечание

Количество

1

84201142

Incl 2 - 14

MODULE

1шт.

2

84379138

ATS 815875

PIN

1шт.

3

84379140

SEALING STRIP,722.6mm L

ATS 824371

2шт.

4

84379148

Mounting

CHANNEL

1шт.

5

84379149

Mounting

CHANNEL

1шт.

6

84379153

with Decals

RADIATOR

1шт.

7

87687374

CLIP

ATS 812837

1шт.

8

87687375

RADIATOR CAP

ATS 816525

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

10

84475176

with Decals, Low Fin Density, Applications With Significant Air-Born Debris, Not For Use In Hot Environments Or In High Engine Load Applications

RADIATOR

1шт.

11

84475178

Low Fin Density, Applications With Significant Air-Born Debris, Not For Use In Hot Environments Or In High Engine Load Applications

OIL COOLER

1шт.

11

84379132

ATS 22552

OIL COOLER,Standard Fin Density

1шт.

12

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1 5/16"-12 UN-2A, Check Valve

1шт.

13

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 14

1шт.

14

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Incl In 13

1шт.

Выбрано товаров: 15
