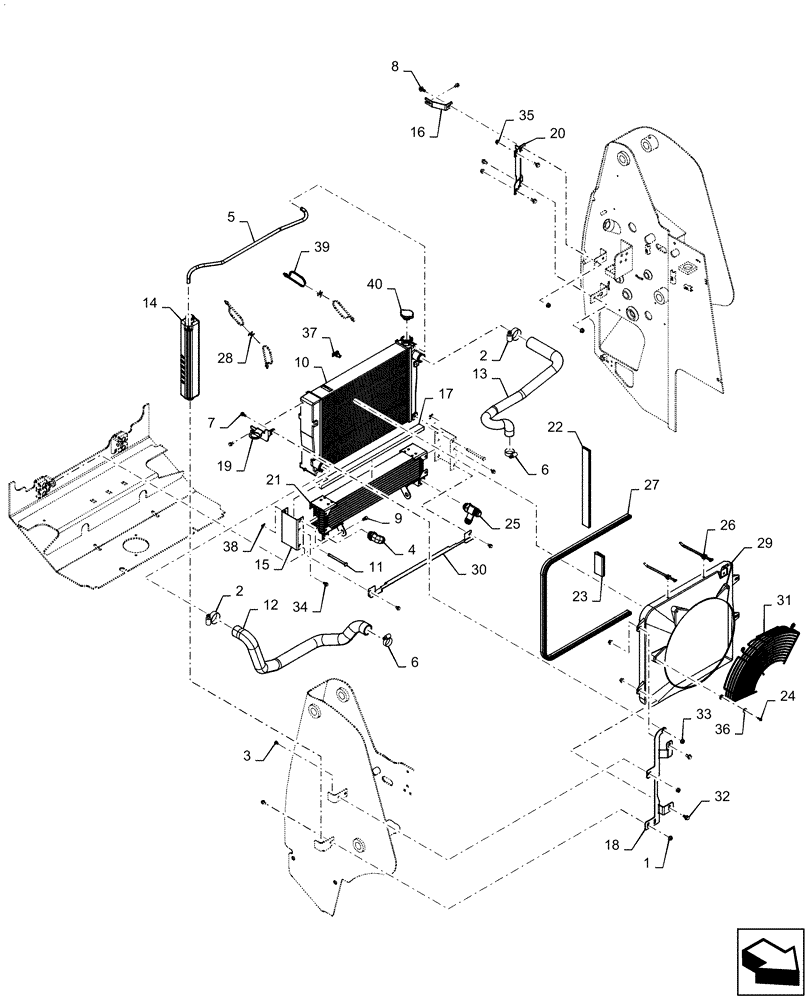

Запчасти Case IH SR175 (10.400.AY) - RADIATOR & RELATED PARTS, 1-MAY-2015 & NEWER (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

3

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

1шт.

4

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

5

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

6

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

9

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

10

47389489

RADIATOR

Standard Fin Density

1шт.

10

47389491

RADIATOR

Low Fin Density

1шт.

11

47375204

PIN,9.65mm OD x 120.45mm L

2шт.

12

47456747

RADIATOR HOSE

Lower

1шт.

13

47458678

RADIATOR HOSE

Upper

1шт.

14

47490003

BOTTLE

Coolant Recovery

1шт.

15

47511179

Cooler Mounting, Gray

CHANNEL

2шт.

16

47516027

BRACKET

Radiator Mount

1шт.

17

47535111

Coolers, 706.5mm L x 35mm W x 18mm Thk

INSULATION

1шт.

18

47681404

Fan Shroud, RH

BRACKET

1шт.

19

47681407

Coolant Bottle, Upper

BRACKET

1шт.

20

84552138

BRACKET

Fan Shroud, LH

1шт.

21

47740534

Standard Fin Density

OIL COOLER

1шт.

21

47778419

Low Fin Density

OIL COOLER

1шт.

22

47746302

Bulk Roll

SEAL

1шт.

23

47839171

116mm L

RUBBER SEAL

1шт.

24

84137412

SCREW,Hex Flng, M6 x 18mm

3шт.

25

84259482

TEE,1-5/16" - 12 ORB x 1-5/16" - 12 JIC x 1-5/16" - 12 JIC

1шт.

26

84259663

CABLE TIE,228.6mm L, Nylon, Black

2шт.

27

84277011

RUBBER SEAL,1721mm L

1шт.

28

84318895

SPACER,17.97mm H

2шт.

29

84412488

SHROUD

450mm Fan

1шт.

30

84488980

Shroud Seal

BRACKET

1шт.

31

84553054

Fan

GUARD

1шт.

32

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

6шт.

33

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

34

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

10шт.

35

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

36

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

37

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

38

87700737

CLIP

Pin

2шт.

39

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

40

87406949

FILLER CAP

Radiator, 16 PSI

1шт.
