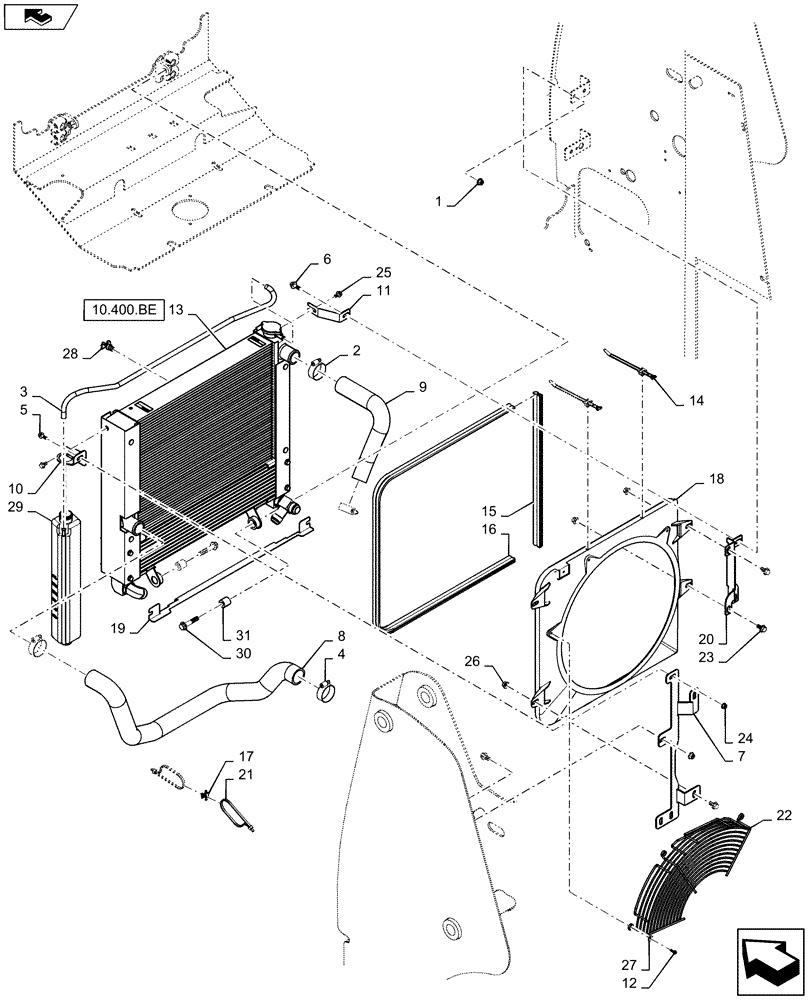

Запчасти Case IH SR175 (10.400.AY) - RADIATOR & RELATED PARTS (10) - ENGINE

1

43435

FLANGE NUT,Hex, M10 x 1.5

4шт.

2

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

3

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

1шт.

4

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

7

47681404

Fan Shroud, RH

BRACKET

1шт.

8

47456747

RADIATOR HOSE

Lower Coolant

1шт.

9

47458678

RADIATOR HOSE

Upper Coolant

1шт.

10

47681407

Coolant Bottle

BRACKET

1шт.

11

47516027

BRACKET

Radiator Mount

1шт.

12

84137412

SCREW,Hex Flng, M6 x 18mm

3шт.

13

84201142

Radiator and Cooling

MODULE

1шт.

14

84259663

CABLE TIE,228.6mm L, Nylon, Black

Tie

2шт.

15

84277010

Bulb

RUBBER SEAL,576.1mm L

1шт.

16

84277011

Bulb

RUBBER SEAL,1721mm L

1шт.

17

84318895

SPACER,17.97mm H

Swivel Tie Base

2шт.

18

84412488

SHROUD

450mm Fan

1шт.

19

84488980

Shroud Seal

BRACKET

1шт.

20

84552138

BRACKET

Fan Shroud, LH

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose Tie

4шт.

22

84553054

Fan

GUARD

1шт.

23

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

7шт.

24

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

25

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

26

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

27

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

28

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain Fuel Tank

1шт.

29

87020980

BOTTLE,2L

Coolant Recovery, Years: -31-DEC-14

1шт.

29

47490003

BOTTLE

Coolant Recovery, Start Year: 01-JAN-15

1шт.

30

87301277

BOLT,M12 x 71.8mm, Cl 10.9

2шт.

31

87626729

SPACER,12.8mm ID x 25.4mm OD x 25.4mm L

Hinge Pivot

2шт.
