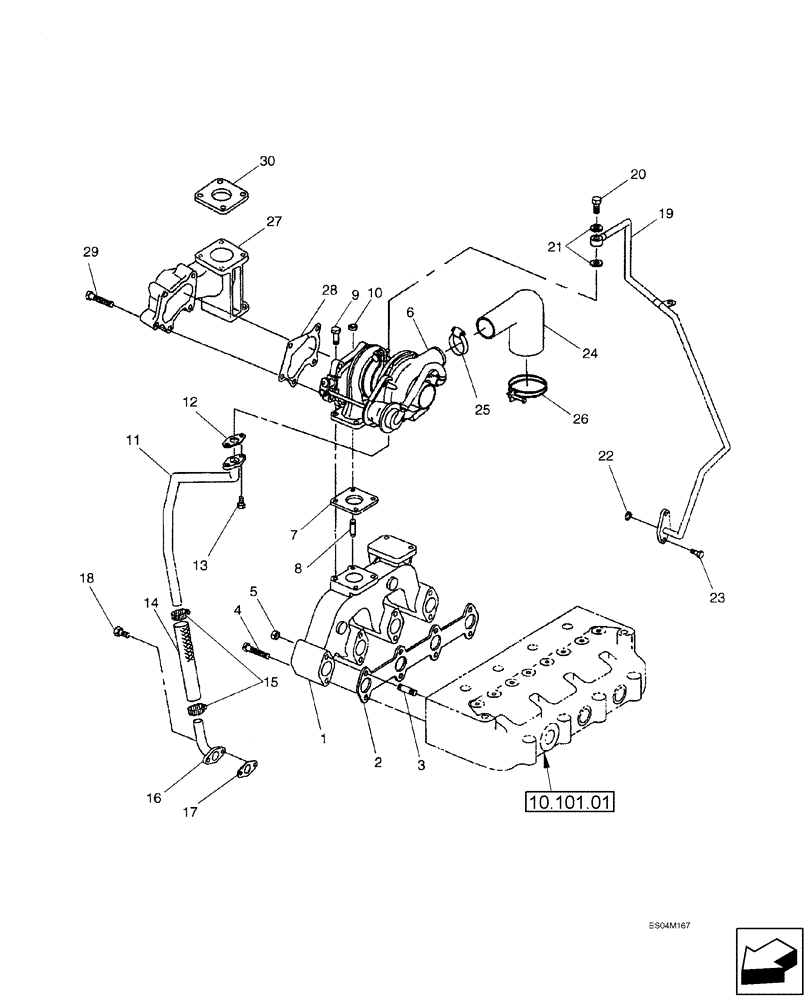

Запчасти Case IH SR175 (10.250.AC) - TURBOCHARGER (10) - ENGINE

1

SBA135617240

EXHAUST MANIFOLD

1шт.

2

SBA135996780

MANIFOLD GASKET

1шт.

3

SBA012110875

STUD

Bolt

2шт.

4

SBA011510875

BOLT

6шт.

5

SBA023100008

NUT

2шт.

6

SBA135756171

TURBOCHARGER

1шт.

6

SBA135756171R

REMAN-TURBOCHARGER

Reman For New PN SBA135756171

1шт.

6

SBA135756171C

CORE-TURBOCHARGER

Return Number

1шт.

7

SBA135997020

GASKET

1шт.

8

SBA012109235

STUD

Stainless Steel

2шт.

9

SBA010109465

SCREW

Stainless Steel

2шт.

10

SBA023100008

NUT

2шт.

11

SBA140607320

TUBE

1шт.

12

SBA140996280

GASKET

1шт.

13

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

14

SBA063209121

HOSE

1шт.

15

SBA198756200

BAND

Band

2шт.

16

SBA140607370

TUBE

1шт.

17

SBA140996280

GASKET

1шт.

18

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

19

SBA140607360

PIPE

1шт.

20

SBA198486780

BANJO BOLT

M8 x 1.25; If Used

1шт.

20

SBA198487840

SCREW

M10 x 1.5; If Used

1шт.

21

SBA054109025

SEAL

2шт.

22

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

23

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

24

SBA135596570

ELBOW

Hose, Rubber

1шт.

25

SBA067100065

CLIP

1шт.

26

SBA398750450

BAND

1шт.

27

SBA135617440

ELBOW

1шт.

28

SBA135997031

GASKET

Replaces SBA135997030

1шт.

27a

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

Mounting Elbow Ref 27 to Manifold Ref 1

2шт.

29

SBA010109466

SCREW

5шт.

30

SBA314990013

GASKET

1шт.
