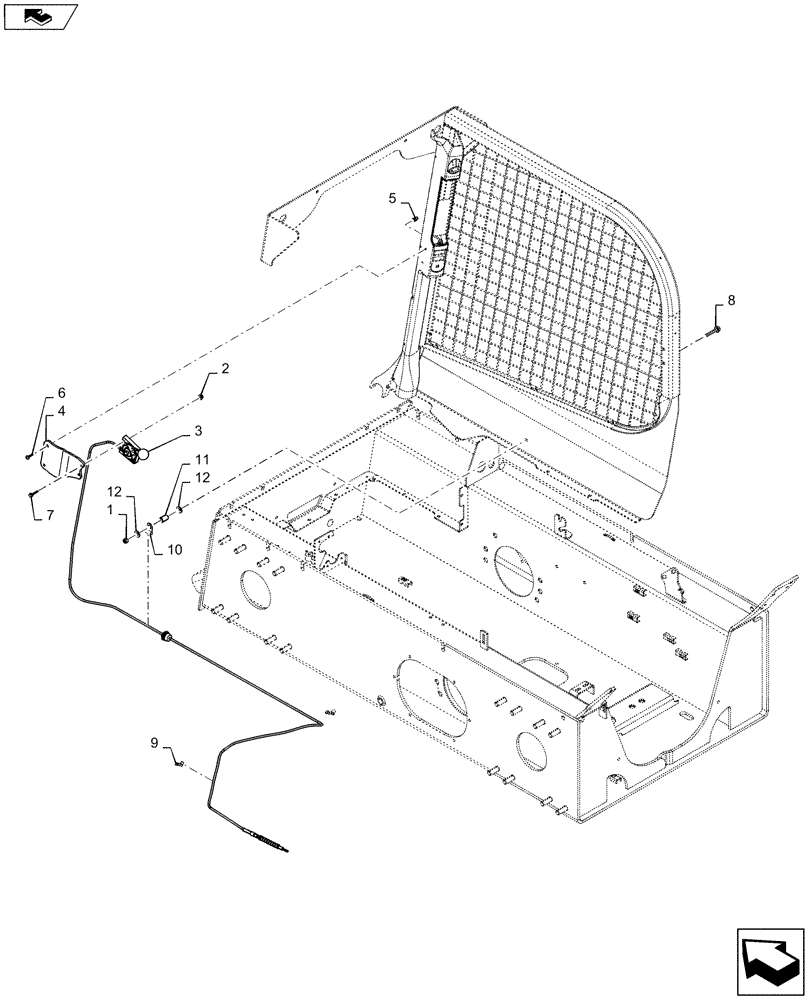

Запчасти Case IH SR175 (10.220.AA[01]) - HAND THROTTLE, MECHANICAL (10) - ENGINE

1

9637692

NUT,3/8"-16, Gr B

1шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

3

47408128

Hand Throttle

THROTTLE CONTROL,3240mm L

1шт.

4

47536465

Hand Throttle

MOUNT

1шт.

5

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

2шт.

6

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

7

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

8

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

10

86639010

CLAMP,9.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

11

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.
