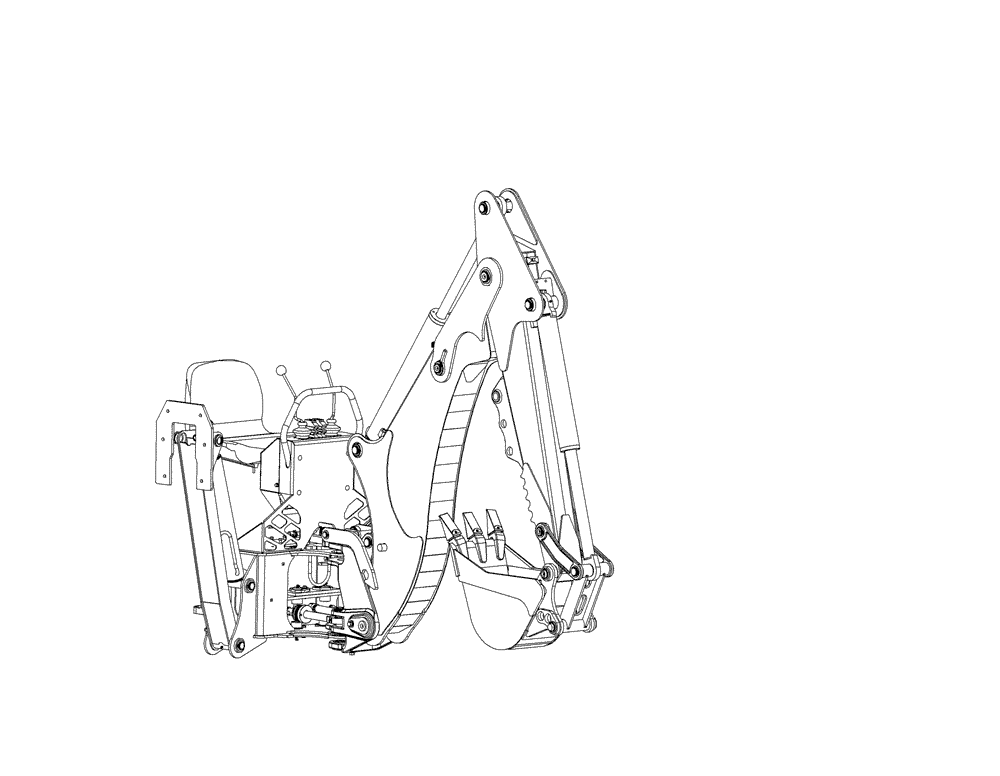

Запчасти Case IH SR175 (95.008.AAS) - BACKHOES, SR175 W/12 X 16.5 (95) - CE ATTACHMENTS

1

87498441

BUCKET

485 Backhoe, Incl Fold Down Stabilizers W/ Flip Over Dirt Pads, Bolt-on Rubber Pads are Opt

1шт.

Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd

1шт.

Model Compatibility: SR130, SR150, SR160, SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, 410, 420, 430, 420CT

1шт.

2

87318188

ATTACHMENT

509 Backhoe, Incl Fold Down Stabilizers, Must Select Pad Opt for Fold Down or Vertical Stabilizers, Vertical Stabilizer May be Substituted

1шт.

Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd

1шт.

Model Compatibility: SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 410, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT

1шт.

3

87318189

ATTACHMENT

511 Backhoe, Incl Fold Down Stabilizers, Must Select Pad Opt for Fold Down or Vertical Stabilizers, Vertical Stabilizer May be Substituted

1шт.

Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd

1шт.

Model Compatibility: SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT

1шт.

4

84420965

KIT

Complete Mounting, Backhoe and Loader Halves

1шт.

Model Compatibility: SR175 W/ 12 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380

1шт.

5

84420967

ATTACHMENT

Mounting Brackets, Loader Half Only, Field Installed, Order as Needed

1шт.

Model Compatibility: SR175 W/ 12 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380

1шт.

6

86547400

SHEET

Std Dirt Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required

1шт.

7

86547423

STREET PLATE

Rubber Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required

1шт.

8

86547424

STREET PLATE

Flip Over Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required

1шт.

9

84150223

STREET PLATE

Rubber Pad Option for 485, Fold Down, Optional Stabilizer Pad Not Required

1шт.

10

86590026

STREET PLATE

Std Dirt Pad Option for All Models, Vertical, One Stabilizer Pad Option Required

1шт.

11

86590027

STREET PLATE

Rubber Pad Option for All Models, Vertical, One Stabilizer Pad Option Required

1шт.

12

86590028

STREET PLATE

Flat Pad Option for All Models, Vertical, One Stabilizer Pad Option Required

1шт.

13

87034086

STABILIZER

Vertical for 509, 511, Factory Installed, Order as Needed

1шт.

14

87034088

BRACKET

C & P Bucket Quick Coupler for 509, 511, Factory Installed, Order as Needed

1шт.

15

87487657

ATTACHMENT

Knuckle Arm Thumb for 485, Factory Installed, Order as Needed

1шт.

16

87034089

ATTACHMENT

Knuckle Arm Thumb for 509, 511, Factory Installed, Order as Needed

1шт.

17

87034090

ATTACHMENT

Hydraulic Thumb for 509, 511, Factory Installed, Order as Needed

1шт.

18

87034091

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 509, 511, For Hydraulic Thumb, Hammer and Auger Applications, Factory Installed, Order as Needed

1шт.

19

86547428

BUCKET

10'', 0.9 Ft³, Std Pin-on Bucket Option for 485 Backhoes

1шт.

20

86547429

BUCKET

12'', 1.2 Ft³, Std Pin-on Bucket Option for 485 Backhoes

1шт.

21

86547430

BUCKET

16'', 1.9 Ft³, Std Pin-on Bucket Option for 485 Backhoes

1шт.

22

86547431

BUCKET

18'', 2.1 Ft³, Std Pin-on Bucket Option for 485 Backhoes

1шт.

23

86547432

BUCKET

24'', 3.1 Ft³, Std Pin-on Bucket Option for 485 Backhoes

1шт.

24

86568601

BUCKET

12'', 1.8 Ft³, Std Pin-on Bucket Options for 509 And 511 Backhoes

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

25

86568602

BUCKET

16'', 2.6 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

26

86568603

BUCKET

18'', 3.0 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

27

87034107

BUCKET

20'', 3.4 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

28

86568604

BUCKET

24'', 4.3 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

29

87034108

BUCKET

36'', 6.1 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

30

86619967

RIPPER TOOTH

Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

31

87034110

BUCKET

12'' C & P 027 Heavy Duty, 2.4 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

32

87034111

BUCKET

16'' C & P 027 Heavy Duty, 3.3 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

33

87034112

BUCKET

18'' C & P 027 Heavy Duty, 3.5 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

34

87034114

BUCKET

20'' C & P 027 Heavy Duty, 3.8 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

35

87034115

BUCKET

24'' C & P 027 Heavy Duty, 4.8 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

36

87034116

BUCKET

30'' C & P 027 Heavy Duty, 6.1 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

37

87034117

BUCKET

36'' C & P 027 Heavy Duty, 7.5 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

38

87034118

BUCKET

30'' C & P 027 Ditch Cleaning, 6.1 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

39

87034119

BUCKET

36'' C & P 027 Ditch Cleaning, 7.5 Ft³, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

40

87034120

RIPPER TOOTH

C & P 027, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

41

87034122

COUPLING

C & P 027 Auger Adapter, Allows Case Auger to be Attached to Dipper, Requires Aux Hydraulic Kit, C & P Mount Buckets and Attachments for 509, 511 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

42

87034123

BRACKET

C & P Bucket Quick Coupler for 509, 511, Field Installed Option, Order as Needed

1шт.

43

87487658

ATTACHMENT

Knuckle Arm Thumb for 485, Field Installed Option, Order as Needed

1шт.

44

87034125

ATTACHMENT

Knuckle Arm Thumb for 509, 511, Field Installed Option, Order as Needed

1шт.

45

87034127

ATTACHMENT

Hydraulic Thumb for 509, 511, Field Installed Option, Order as Needed

1шт.

46

87034128

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 509, 511, For Hydraulic Thumb, Hammer and Auger Applications, Field Installed Option, Order as Needed

1шт.

47

87034129

STABILIZER

Vertical for 509, 511, Field Installed Option, Order as Needed

1шт.
