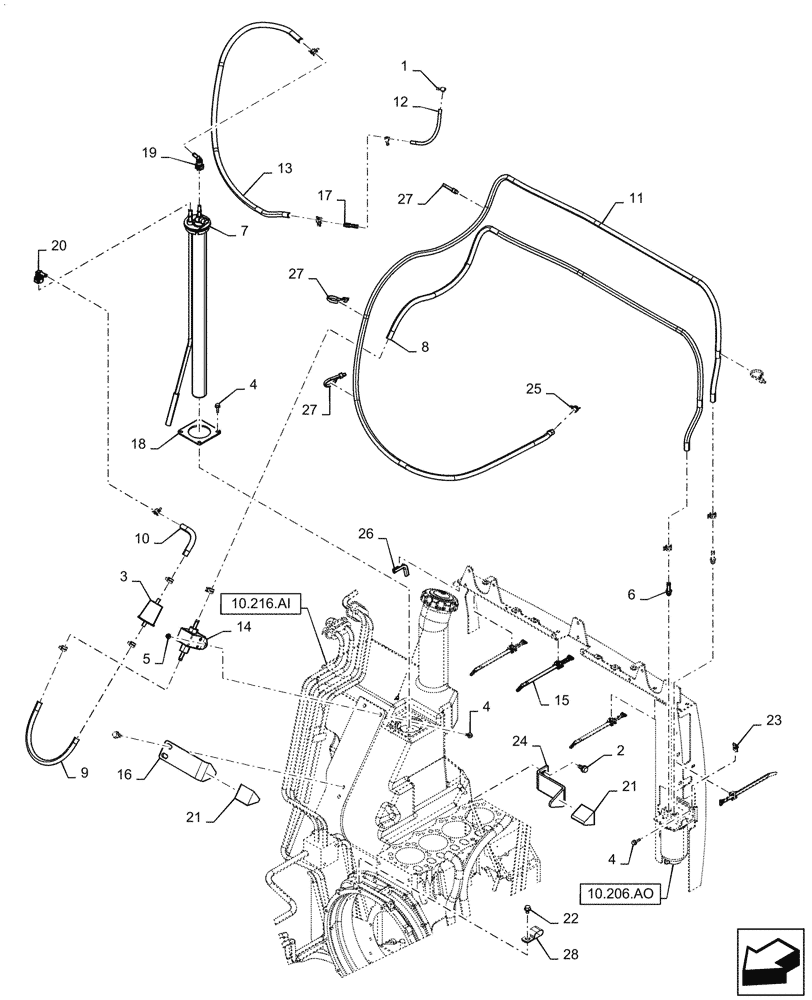

Запчасти Case IH SR175 (10.210.AF) - FUEL LINES (10) - ENGINE

1

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

2

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

4шт.

3

9611973

FUEL FILTER

1шт.

4

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

8шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

6

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

2шт.

7

47747587

SENDER UNIT

Fuel

1шт.

8

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 5.71 FT

1шт.

9

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 1.12 FT

1шт.

10

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 0.5 FT

1шт.

11

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 9.76 FT

1шт.

12

291260

HOSE,5/32" ID

Cut to Length, 0.57 FT

1шт.

13

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

Cut to Length, 3.35 FT

1шт.

14

84130988

FUEL PUMP,12V, 1.4A

1шт.

15

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

16

84273624

Fuel Tank

BRACKET

1шт.

17

84298470

Fuel Fitting

ADAPTER

1шт.

18

84338049

MOUNTING PLATE

Sending Unit Retainer

1шт.

19

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.

20

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

21

84602030

PAD

Foam

2шт.

22

86512520

BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd

1шт.

23

86625073

SPRING NUT,M6 x 1

2шт.

24

87054825

SUPPORT

Fuel Tank

1шт.

25

87436932

CLAMP,13.9mm - 15.5mm, Spring

10шт.

26

87702286

TRIM,Bulk, 1/8" x 30480mm L

1шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

28

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.
