Запчасти Case IH SR175 (10.202.AB) - AIR CLEANER ASSY (10) - ENGINE

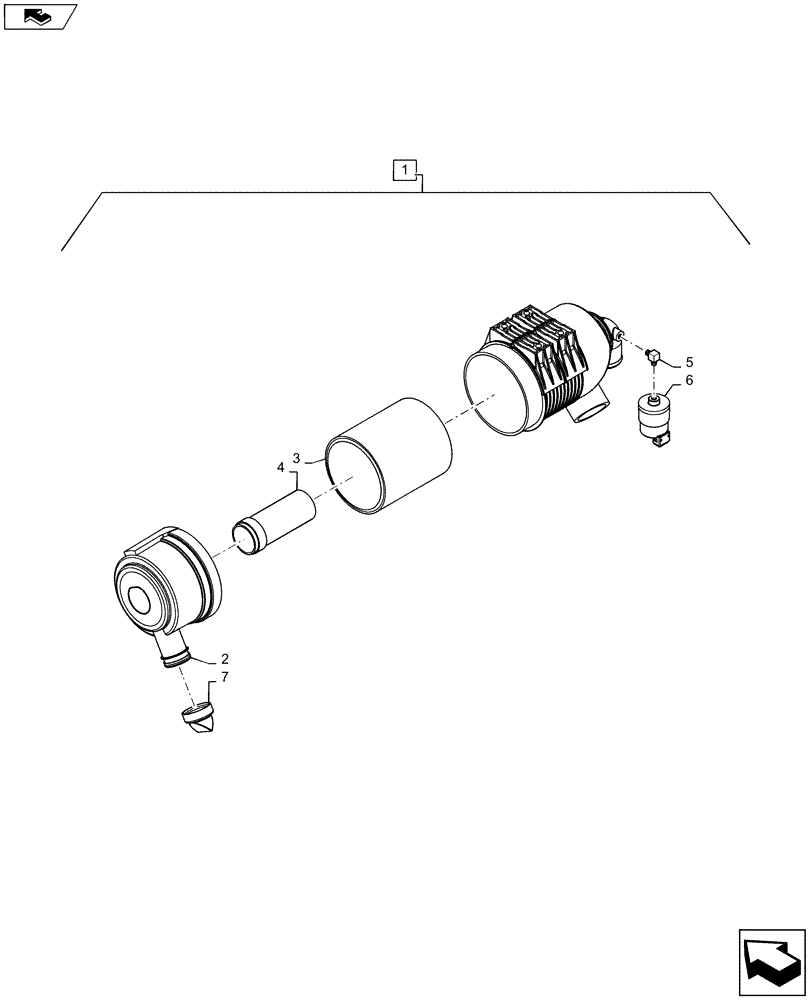

Схема запчастей Case IH SR175 - (10.202.AB) - AIR CLEANER ASSY (10) - ENGINE
4
home
3
7
5
1
2
6

Артикул

Название

Примечание

Количество

1

84263147

AIR CLEANER,7"

7 Inch Assembly, Incl 2 - 7

1шт.

2

440831A1

FILTER COVER

Assy, Incl In 1

1шт.

3

86982522

AIR FILTER

Primary, Incl In 1

1шт.

4

86982523

AIR FILTER

Secondary, Incl In 1

1шт.

5

217-1227

ELBOW,90 Degree, 1/8"-27 Male

Incl In 1

1шт.

6

279492A1

RESTRICTION SWITCH

Air Filter, Incl In 1

1шт.

7

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

Vacuator, Incl In 1

1шт.

Выбрано товаров: 7
