Запчасти Case IH SR175 (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

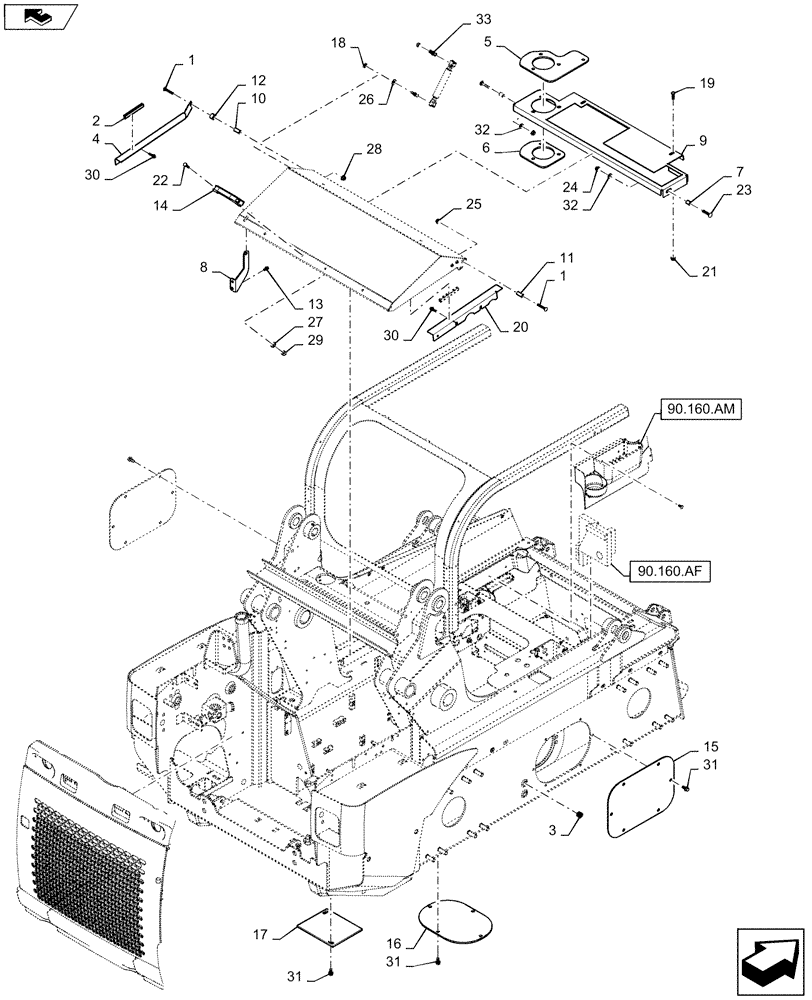

Схема запчастей Case IH SR175 - (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
13
32
31
home
16
11
31
5
14
27
10
17
28
1
90.160.am
19
3
20
4
29
8
9
18
90.160.af
32
25
21
2
6
15
30
33
24
22
26
30
31
23
1
7

Артикул

Название

Примечание

Количество

1

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

2

291186

PROTECTION STRIP,9.9mm W

1шт.

3

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

6шт.

4

47363956

ANGLE

1шт.

5

47434237

BRACKET

1шт.

6

47434973

BRACKET

1шт.

7

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

2шт.

8

47467486

Hood Lock Tab

ANGLE

1шт.

9

47495676

Rear Deck

ANGLE

1шт.

10

47513565

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L

1шт.

11

47513620

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L

1шт.

12

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

1шт.

13

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

14

406256A1

HANDLE

1шт.

15

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

16

84299800

COVER PLATE

1шт.

17

84299809

COVER PLATE

1шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

19

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

20

84605091

SUPPORT

Hood Stop

1шт.

21

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

22

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

23

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

24

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

25

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

28

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

29

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

30

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

29

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

31

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

32

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

33

189609A1

BALL STUD,M8 x 1.25

2шт.

Выбрано товаров: 34
