Запчасти Case IH SR175 (10.103.AA) - CRANKSHAFT & PULLEY (10) - ENGINE

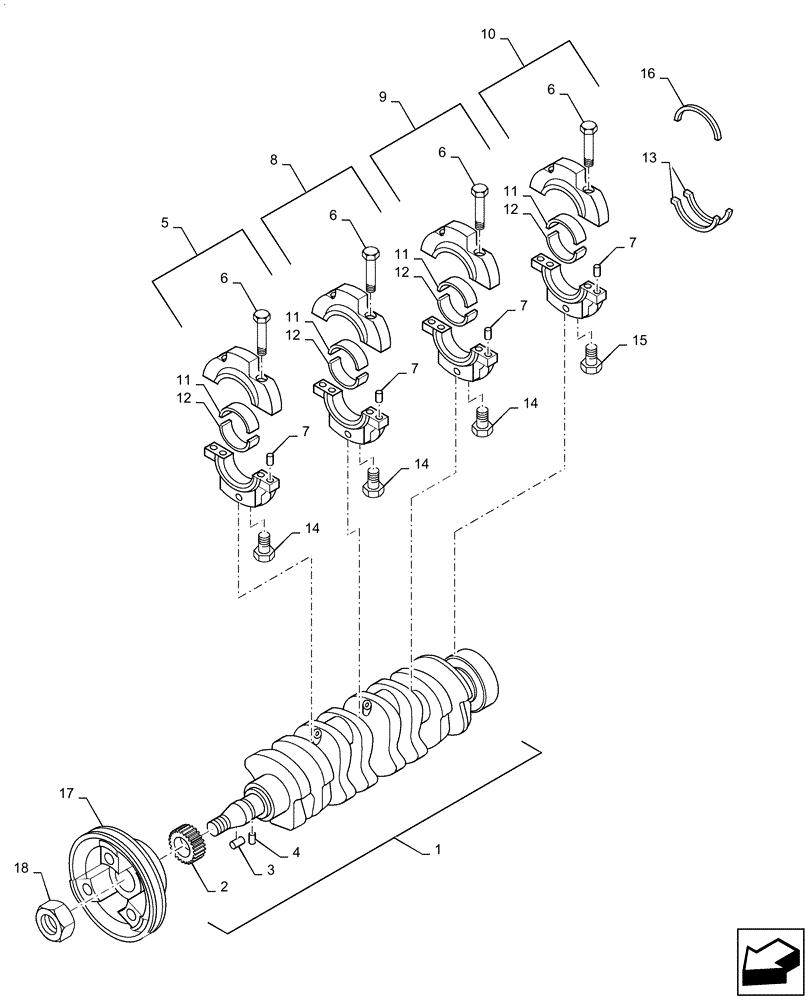

Схема запчастей Case IH SR175 - (10.103.AA) - CRANKSHAFT & PULLEY (10) - ENGINE
10
6
7
14
11
11
7
7
6
14
13
5
8
17
4
6
11
15
12
1
7
16
11
9
12
12
6
2
12
18
3
14

Артикул

Название

Примечание

Количество

1

SBA115256750

CRANKSHAFT

1шт.

1

SBA115256751R

Includes Rod and Main Bearings

REMAN-CRANKSHAFT

1шт.

1

SBA115256751C

Return Number

CORE-CRANKSHAFT

1шт.

2

SBA115276200

GEAR

Crankshaft

1шт.

3

SBA034100508

KEY

1шт.

4

SBA030509020

PIN

Dowel

1шт.

5

SBA110156360

HOLDER

Bearing, Incl Ref 6, 7

1шт.

6

SBA010109406

BOLT

8шт.

7

SBA030500612

DOWEL

8шт.

8

SBA110156370

BEARING CAP

Bearing, Incl Ref 6, 7

1шт.

9

SBA110156380

BEARING CAP

Bearing, Incl Ref 6, 7

1шт.

10

SBA110156390

BEARING CAP

Bearing

1шт.

11

SBA198517231

BEARING

Upper, Std.

4шт.

11

SBA198517236

BEARING LINER,.010" U/S, Upper

4шт.

11

SBA198517239

BEARING LINER,.020" U/S, Upper

4шт.

12

SBA198517241

BEARING

Lower, Std.

4шт.

12

SBA198517246

BEARING LINER,.010" U/S, Lower

4шт.

12

SBA198517249

BEARING LINER,.020" U/S, Lower

4шт.

13

SBA199266200

THRUST WASHER

2шт.

14

SBA011511070

BOLT,M10 x 70

3шт.

15

SBA010700860

BOLT

2шт.

16

SBA199266210

THRUST WASHER

1шт.

17

SBA115391060

PULLEY

1шт.

18

SBA020109086

NUT

1шт.

Выбрано товаров: 24
