Запчасти Case IH SR175 (50.100.AC[02]) - HEATING SYSTEM, MEDIUM FRAME (50) - CAB CLIMATE CONTROL

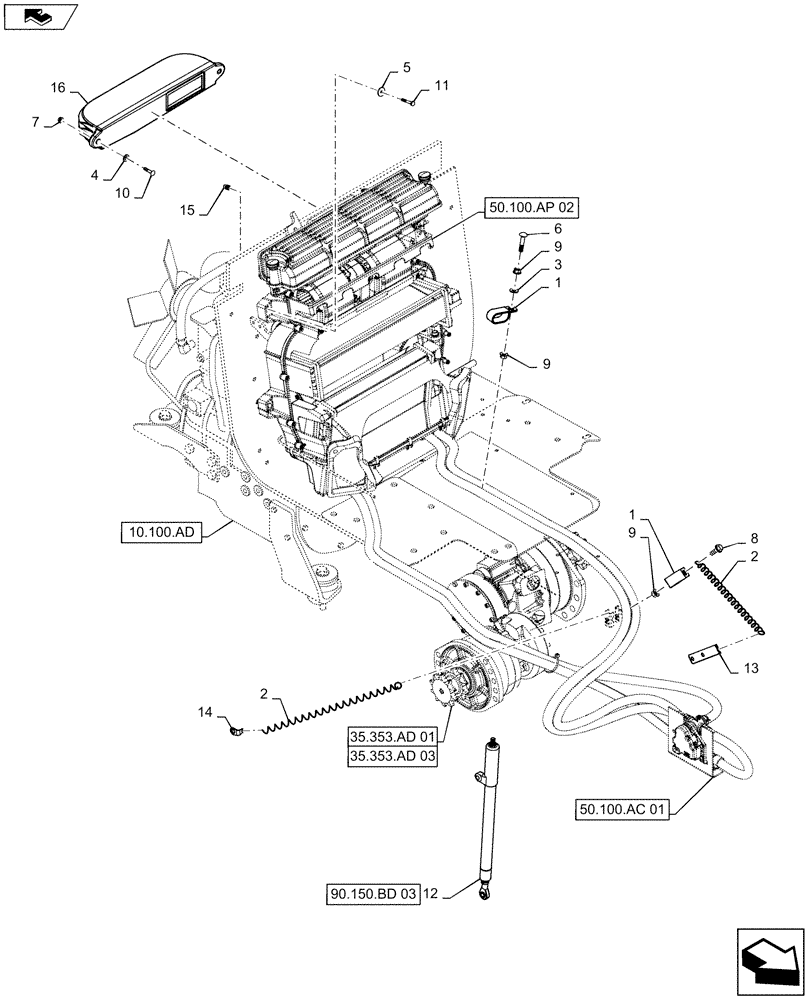

Схема запчастей Case IH SR175 - (50.100.AC[02]) - HEATING SYSTEM, MEDIUM FRAME (50) - CAB CLIMATE CONTROL
4
9
7
14
2
12
5
9
9
1
15
2
50.100.ac 01
8
13
50.100.ap 02
6
90.150.bd 03
10.100.ad
35.353.ad 03
1
3
16
35.353.ad 01
home
11
10

Артикул

Название

Примечание

Количество

1

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

2

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

2шт.

3

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

5

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

6

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

7

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

8

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

10

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

11

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

12

47456910

GAS STRUT

1шт.

13

84370705

BRACKET

1шт.

14

84361522

BRACKET

1шт.

15

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

16

84280313

AIR DUCT

1шт.

Выбрано товаров: 16
