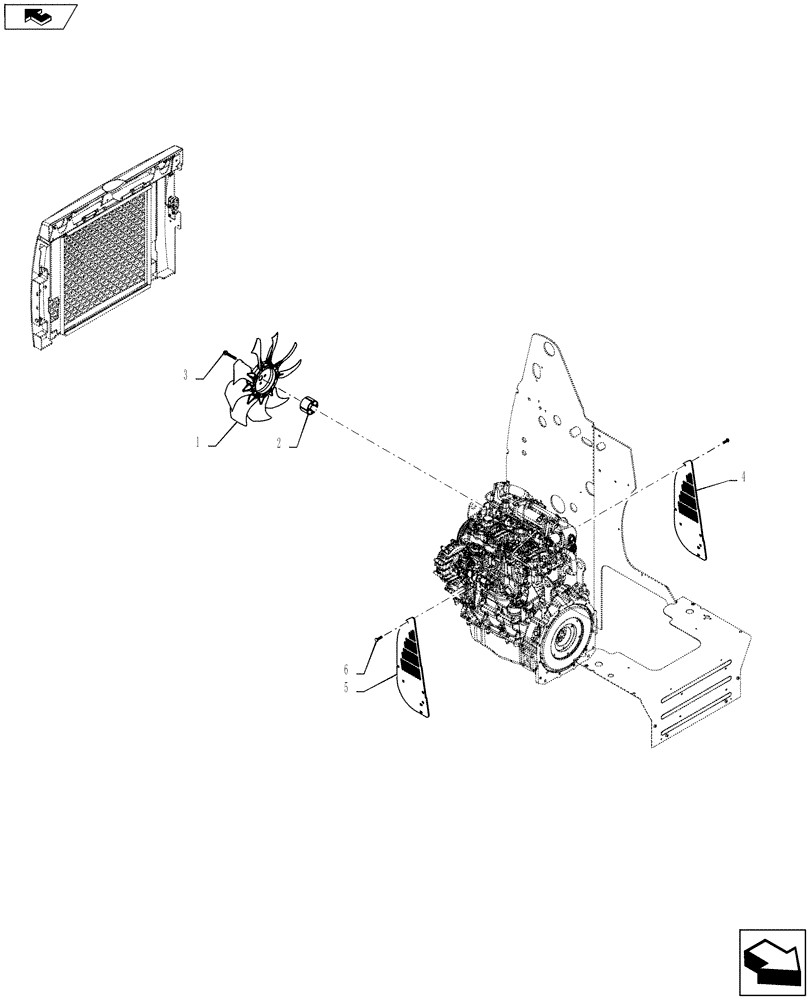

Запчасти Case IH SR175 (10.414.AC) - ENGINE FAN (10) - ENGINE

1

47426353

FAN,9 Blades, 450mm OD

Please Read PIP# U0312, Service Bulletin #2012-002

1шт.

1

47408215

FAN,5 Blades, 440mm OD

Please Read PIP# U0312, Service Bulletin #2012-002, Start Year: 01-JUN-12

1шт.

2

47402648

SPACER,47.5mm W

Extended, Fan ISM

1шт.

3

87023526

BOLT,M6 x 1.0 x 76.6mm, Cl 8.8

4шт.

4

84351125

Chassis Vent LH

COVER PLATE

1шт.

5

84354588

Chassis Vent RH

COVER PLATE

1шт.

6

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.
