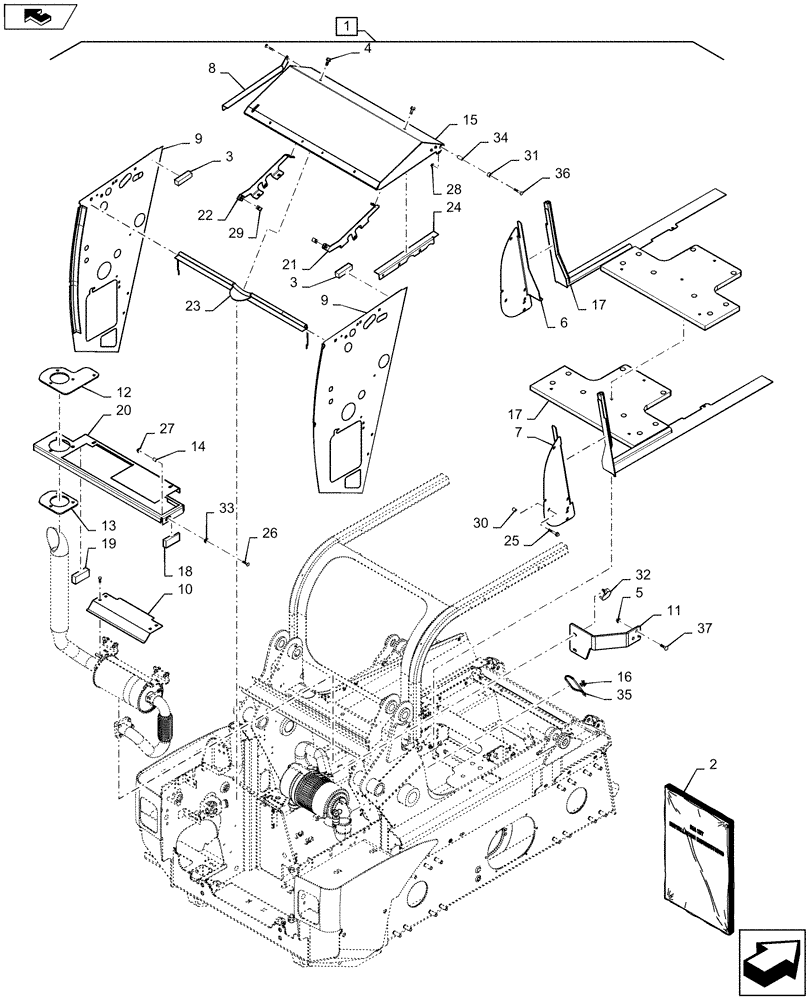

Запчасти Case IH SR175 (88.100.90[13]) - DIA KIT, DEBRIS HARD PARTS WITH SEALS (SR175,SR200,TR270) (88) - ACCESSORIES

1

47415570

Debris Hard Parts With Seals, Incl 2 - 37

KIT

1шт.

2

47459790

Sheet

INSTRUCTION

1шт.

3

WIC291355

PAD

0.624' Foam

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

6

47359203

COVER

Chassis Heat

1шт.

7

47359205

COVER

Chassis Vent, RH

1шт.

8

47363956

ANGLE

Hood Stop, Angle, LH

1шт.

9

47365894

SEAL

1620mm

1шт.

10

47367892

BRACKET

Heat Shield

1шт.

11

47389924

BRACKET

Air Cleaner

1шт.

12

47434237

Stiffner Rear Deck

BRACKET

1шт.

13

47434973

Stiffner, Gray

BRACKET

1шт.

14

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

2шт.

15

47440359

Rad Tilt

HOOD

1шт.

16

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

17

84338534

SEAL,Bulk 30.48m

2000mm

1шт.

18

84600485

FOAM INSULATION

Insualtion Hood, RH

1шт.

19

84600487

FOAM INSULATION

Insualtion Hood, LH

1шт.

20

84600794

BRACKET

Rear Deck

1шт.

21

84600798

REINFORCEMENT

Tilt, Reinforcement

1шт.

22

84600800

REINFORCEMENT

Hood

1шт.

23

84602176

SEAL

1787mm, Bulb

1шт.

24

84605091

SUPPORT

Hood Stop

1шт.

25

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

3шт.

26

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

27

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

28

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

29

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

30

87377305

SPACER,6.8mm ID x 10.3mm OD x 13mm L

Spacer, 1/8" Pipe

3шт.

31

87429698

SPACER

Hood

2шт.

32

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

33

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

34

259905A1

SPACER

31.25" OAL

2шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

15" OAL

2шт.

36

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

37

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.
