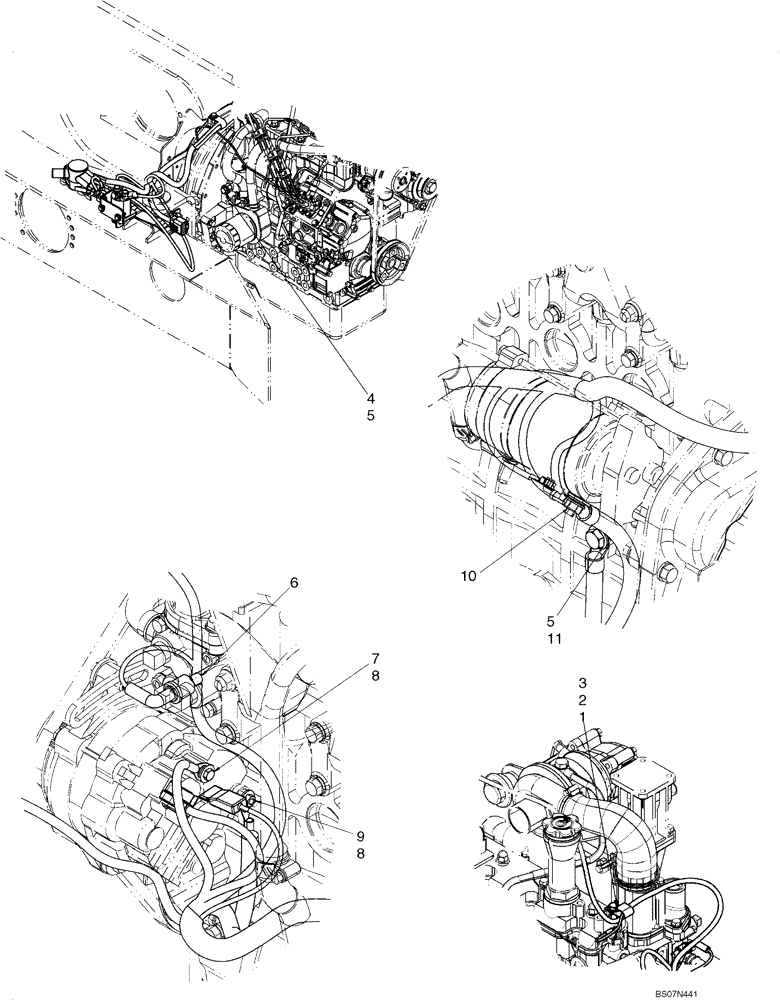

Запчасти Case IH SR175 (55.100.01[02]) - ENGINE - ELECTRICAL (55) - ELECTRICAL SYSTEMS

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

3

134579

WIRE CLAMP,J

1шт.

4

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

1шт.

5

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

6

3917490

TEMPERATURE SENDER

Water Temperature Sending Unit

1шт.

7

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

1шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

9

86508813

NUT,M5, Cl 8

1шт.

10

9706690

NUT,M8 x 1.25, Cl 8

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.
