Запчасти Case IH SR175 (35.734.AH[02]) - AUX HYD, HIGH FLOW, ARM PLUMBING (SR175)(SR200) (35) - HYDRAULIC SYSTEMS

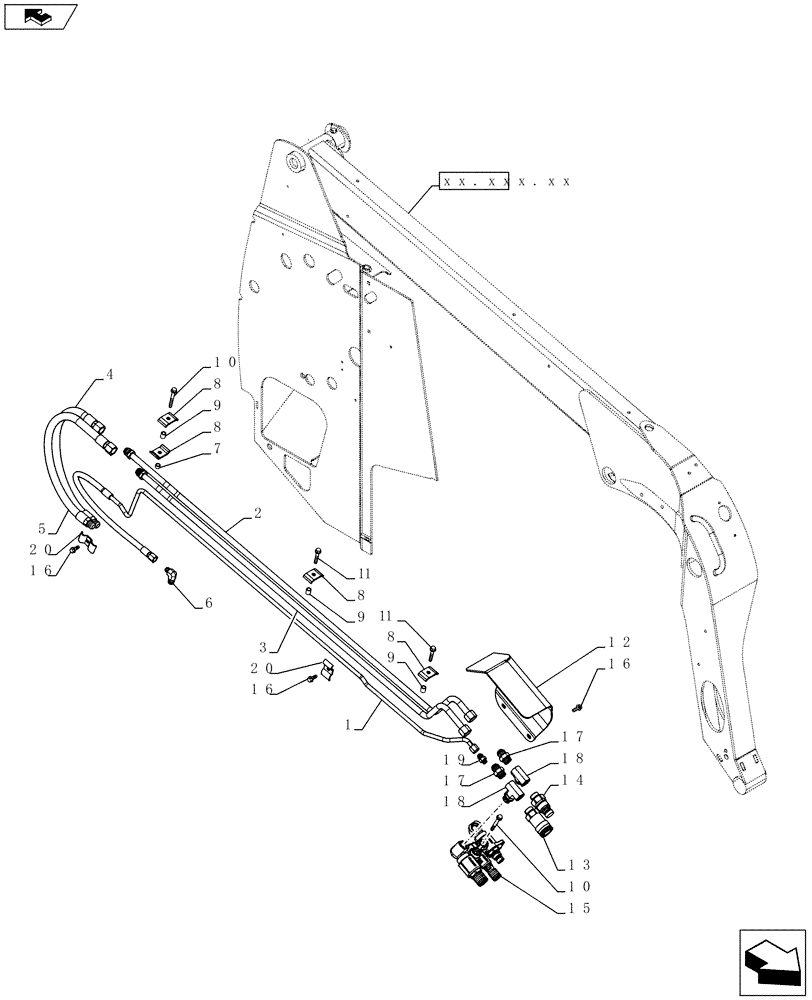

Схема запчастей Case IH SR175 - (35.734.AH[02]) - AUX HYD, HIGH FLOW, ARM PLUMBING (SR175)(SR200) (35) - HYDRAULIC SYSTEMS
9
home
9
20
10
18
16
17
9
1
12
17
8
6
3
8
13
5
15
8
20
4
xx.xxx.xx
11
8
1
16
18
16
2
10
14
19
7

Артикул

Название

Примечание

Количество

1

84338474

Assembly, Case Drain

HYD TUBE

1шт.

2

84322573

Assembly, HF Male

HYD TUBE

1шт.

3

84322576

Assembly, HF Female

HYD TUBE

1шт.

4

84322575

Assembly, HF Aux Male

FLEXIBLE HOSE,15.88mm ID x 698mm L, SAE 100R17

1шт.

5

84322578

Assembly, HF Aux Female

FLEXIBLE HOSE,15.88mm ID x 773mm L, SAE 100R17

1шт.

6

76352

90 ELBOW,3/4" - 16 JIC x 1/2" - 14 NPTF

1шт.

7

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

1шт.

8

84277076

Tube

PIPE CLAMP,64.1mm L x 38.1mm W x 4.75mm Thk

4шт.

9

84277083

TUBE SPACER,11.1mm ID x 15.9mm OD x 18.1mm L

3шт.

10

84331287

SCREW,HWH, 3/8" - 16 x 3"

Tapping, 3/8-16 X 3 TT

3шт.

11

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

Tapping, 3/8 X 1.75 TT HW ZND

2шт.

12

84306937

COVER PLATE

Hydraulic Tan

1шт.

13

84257182

COUPLING, QUICK, FEM,5/8" x -12 ORB

Female Quick Coupler

1шт.

14

84257183

QUICK MALE COUPLING,5/8" x -12 ORB

Male Quick Coupler

1шт.

15

84259689

Quick Attach, High Flow, Includes Ref. 15A - 15C, Years: -15-FEB-13

VALVE

1шт.

15

47447054

VALVE

Quick Attach, High Flow, Includes Ref. 15A - 15C, Start Year: 15-FEB-13

1шт.

15a

84390117

1/2 Inch Male, Years: -15-FEB-13

COUPLING

1шт.

15a

47396760

COUPLING,1/2" Male

1/2" Male, Start Year: 15-FEB-13

1шт.

15b

84390118

1/2 Inch Female, Years: -15-FEB-13

COUPLING

1шт.

15b

47396761

COUPLING,1/2" Female

1/2" Female, Start Year: 15-FEB-13

1шт.

15c

84390119

3/8 Inch Female, Years: -15-FEB-13

COUPLING

1шт.

15c

47396762

COUPLING,3/8" Female

3/8" Female, Start Year: 15-FEB-13

1шт.

16

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

17

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

18

84255994

FITTING,Male - 12 ORB x Fem - 12 ORB x Fem - 12 ORB

Tee Adj -12 ORB

2шт.

19

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

20

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

Выбрано товаров: 27
