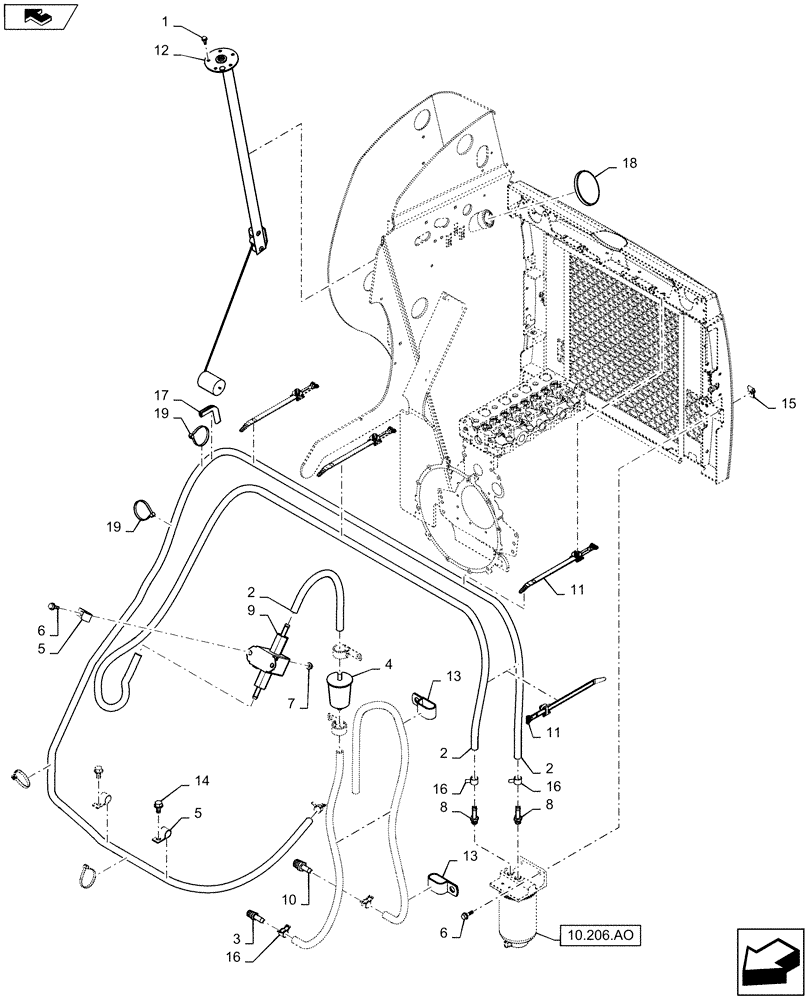

Запчасти Case IH SR160 (10.210.AF) - FUEL LINE & INLINE FILTER (10) - ENGINE

1

281050

SELF-TAP SCREW,#10-24 x 15.44mm OAL

5шт.

2

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

22.8ft Fuel Line

1шт.

3

847367

FITTING,5/16" Hose x 1/4" NPTF, Barbed

1шт.

4

9611973

FUEL FILTER

In-Line

1шт.

5

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

6

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

2шт.

9

47420302

FUEL PUMP,12V, 3A

Electrical Lift

1шт.

10

84193282

FITTING,3/8" NPTF x 5/16" Hose Barb

1шт.

11

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

12

84284998

Feul Level

SENSOR

1шт.

13

L302731

CLAMP,19mm D Clamping Pipes

Double, 19.1mm DIA

2шт.

14

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

15

86625073

SPRING NUT,M6 x 1

2шт.

16

87436932

CLAMP,13.9mm - 15.5mm, Spring

10шт.

17

87702286

85.3mm, Edge Channel

TRIM,Bulk, 1/8" x 30480mm L

1шт.

18

H436887

CAP

Non-Locking, Fuel

1шт.

18

108925A1

FILLER CAP

Locking, Fuel

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

6шт.
