Запчасти Case IH SR160 (90.160.AR[02]) - FLOOR MAT, MECHANICAL FOOT CONTROLS (18-SEP-2015 & NEWER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

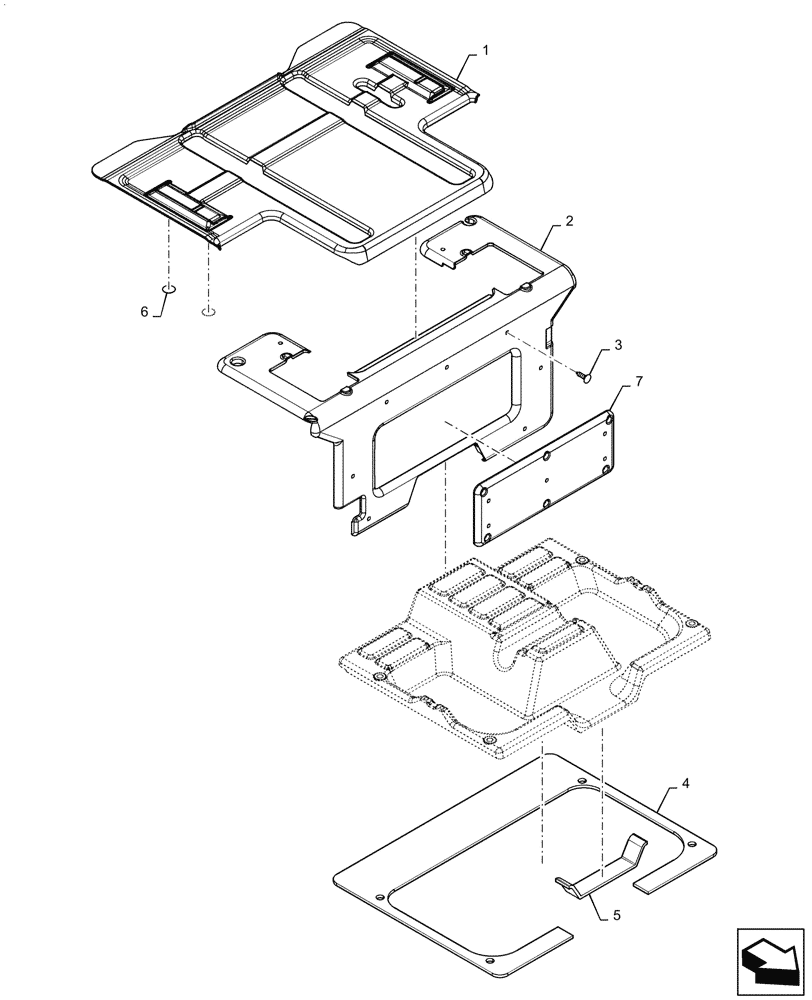

Схема запчастей Case IH SR160 - (90.160.AR[02]) - FLOOR MAT, MECHANICAL FOOT CONTROLS (18-SEP-2015 & NEWER) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
1
6
4
3
7

Артикул

Название

Примечание

Количество

1

47912946

FLOOR MAT

Seat Pan

1шт.

2

47916881

FLOOR MAT

Heel Plate

1шт.

3

86620930

FASTENER,Push-In, 1.10" L, Nylon

14шт.

4

84372626

FOAM

Floor Plate

1шт.

5

84372707

FOAM

265mm L, Front Floor Plate

1шт.

6

414635A1

COVER,25.4mm OD x 0.51mm Thk

4шт.

7

47912580

FLOOR MAT

Heel Plate, Fuse Box Access Panel

1шт.

Выбрано товаров: 7
