Запчасти Case IH SR160 (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (18-SEP-2015 & NEWER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

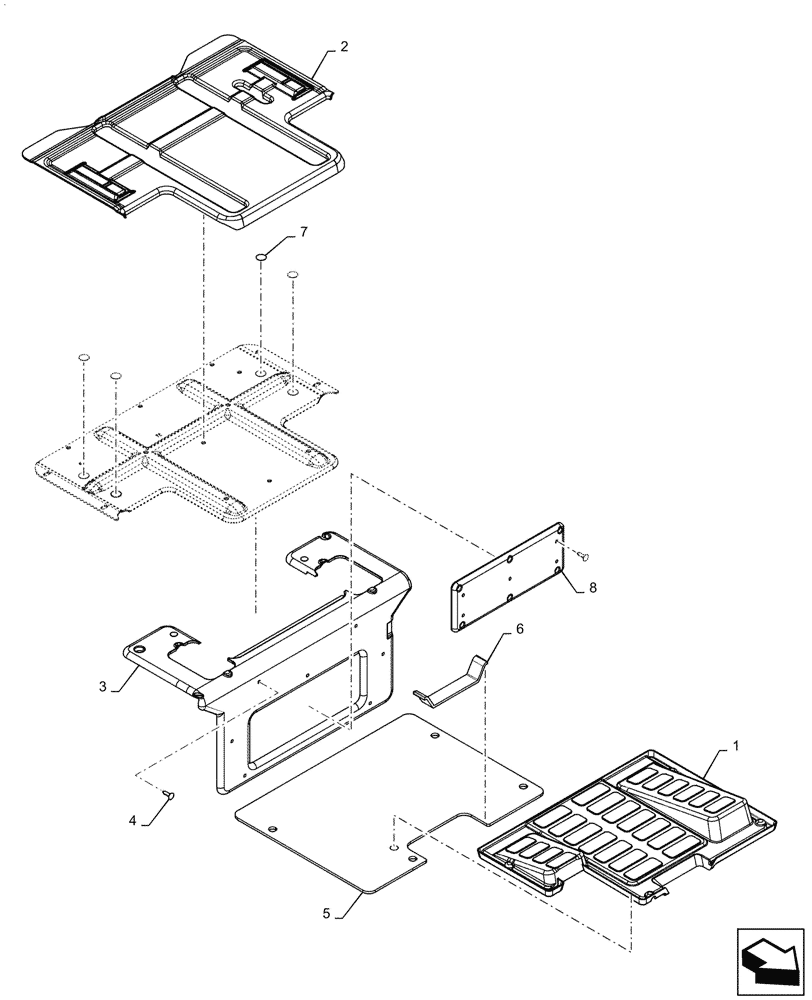

Схема запчастей Case IH SR160 - (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (18-SEP-2015 & NEWER) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
5
4
6
8
1
3
7

Артикул

Название

Примечание

Количество

1

47916207

FLOOR MAT

Trim

1шт.

2

47912946

FLOOR MAT

Seat Pan

1шт.

3

47912576

FLOOR MAT

Heel Plate

1шт.

4

86620930

FASTENER,Push-In, 1.10" L, Nylon

14шт.

5

47504907

FOAM

Floor Plate

1шт.

6

84372707

FOAM

265mm L, Front Floor Plate

1шт.

7

414635A1

COVER,25.4mm OD x 0.51mm Thk

4шт.

8

47912580

FLOOR MAT

Heel Plate, Fuse Box Access Panel

1шт.

Выбрано товаров: 8
