Запчасти Case IH SR160 (90.160.AM) - FUSE COVER ASSY AND CUP HOLDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

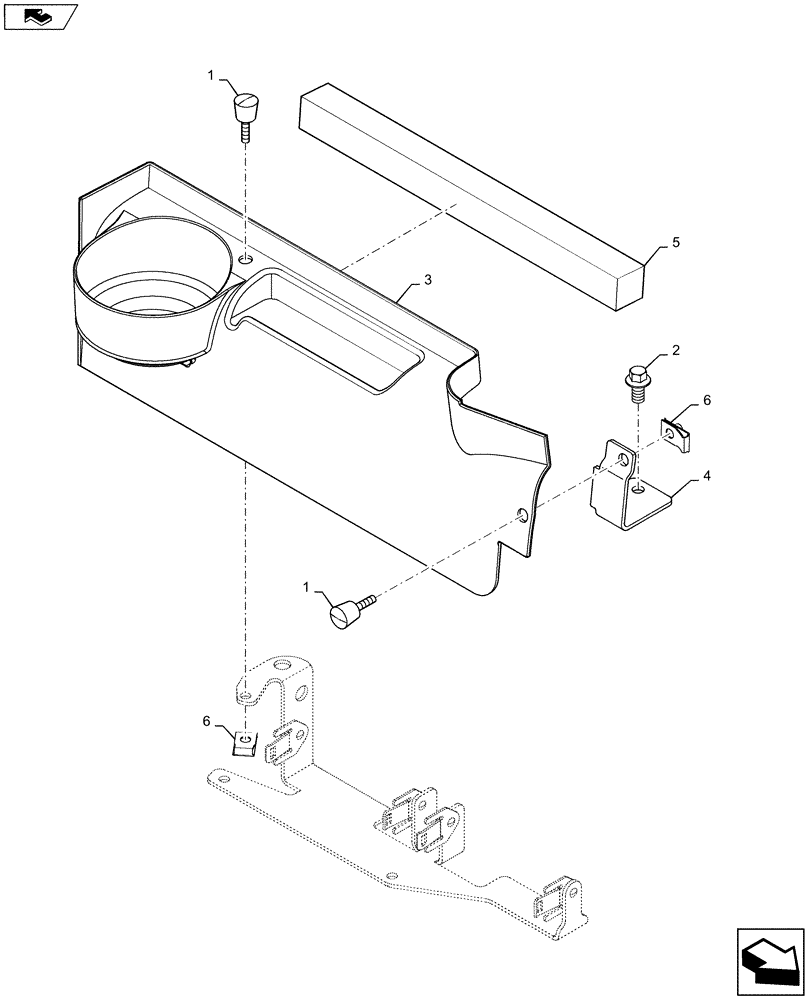

Схема запчастей Case IH SR160 - (90.160.AM) - FUSE COVER ASSY AND CUP HOLDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
1
4
6
2
3
5
1
6

Артикул

Название

Примечание

Количество

1

273890

THUMB SCREW,#10 - 32 x 3/4"

Thumb Screw

2шт.

2

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 - 1.25 x 15, ZND

2шт.

3

84301229

Fuse, Years: -30-SEP-16

COVER

1шт.

3

47920891

Fuse, Start Year: 01-OCT-16

COVER

1шт.

4

84605133

BRACKET

Fuse Cover, Gray

1шт.

5

84328022

FOAM INSULATION,Bulk 7.5 FT

Bulk Foam, Cut To Length Required

1шт.

6

87301324

NUT,Spring, M5 x 0.8

2шт.

Выбрано товаров: 7
