Запчасти Case IH SR160 (90.156.AB[02]) - REAR WINDOW, WITH REAR WIPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

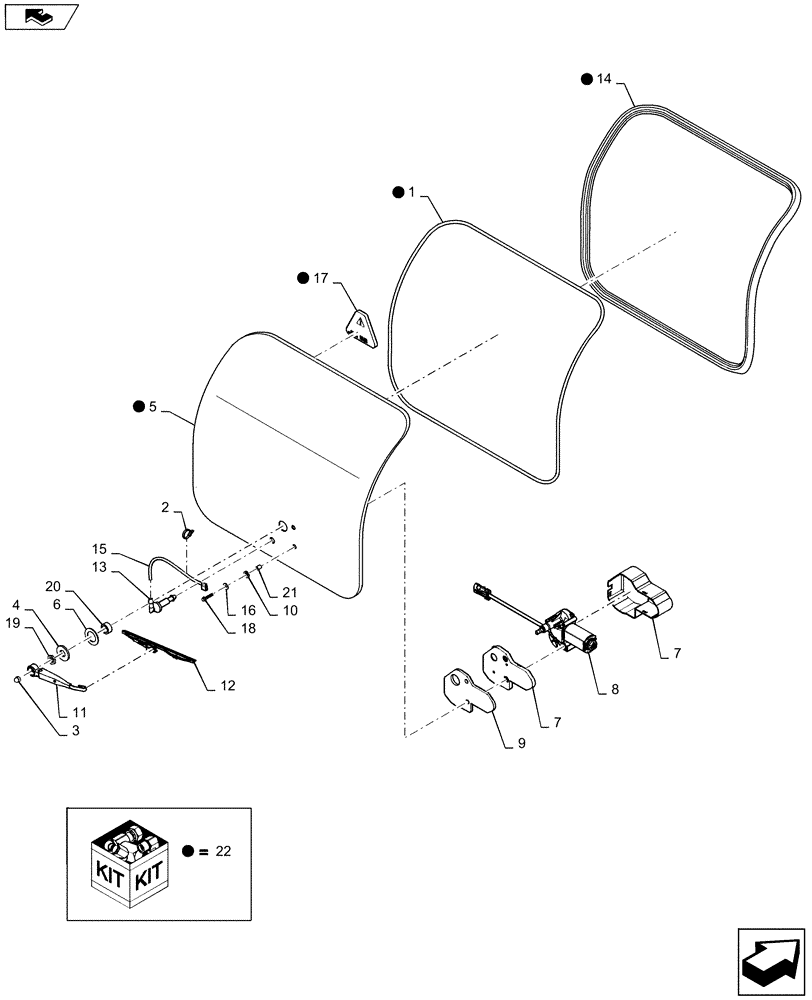

Схема запчастей Case IH SR160 - (90.156.AB[02]) - REAR WINDOW, WITH REAR WIPER (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
2
22
22
17
22
21
18
11
9
22
7
5
10
8
22
15
13
1
16
22
7
12
3
home
19
14
4
20

Артикул

Название

Примечание

Количество

1

92626

MOLDING,200FT L

Locking Strip, Bulk, 200' Cut To Length

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

3

412326

CROWN NUT,Dome, M8 x 1.25mm, Cl 6

1шт.

4

84156178

WASHER,0.78" ID x 1.75" OD x 0.18" Thk

0.781" x 1.75" x 0.179", CST, ZND

1шт.

5

84251333

TINTED GLASS

Rear Window, EU

1шт.

6

84297721

SEAL,31mm ID x 50mm OD x 2mm Thk

Washer

1шт.

7

84300094

COVER

Cover

1шт.

8

84319569

WIPER MOTOR

Assy

1шт.

9

84319673

GASKET,6.35mm Thk

Rear Wiper

1шт.

10

84321136

SEAL,10.5mm ID x 18.5mm OD x 3mm Thk

10.5mm ID

2шт.

11

84323115

WIPER ARM,Single, 187.5mm L

Rear Window

1шт.

12

84323116

WIPER BLADE,254mm L

Rear Window

1шт.

13

84369351

ELBOW,90 Degree

M8 - 1.25 Thread

1шт.

14

84478939

GASKET,2427.29mm L

Locking

1шт.

15

84513689

NOZZLE

With Hose, Rear Window

1шт.

16

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

17

87026871

PLASTIC SIGN

Exit Tag

1шт.

18

87037822

SELF-TAP SCREW,Hex Flg Hd, M6 x 30

2шт.

19

87607505

NUT,M18, 5mm Thk

Wiper

1шт.

20

87642536

BUSHING,19.8mm ID x 28.6mm OD x 13mm L

Wiper Motor

1шт.

21

87642540

SPACER,6.5mm ID x 9.5mm OD x 13mm L

Wiper Motor

2шт.

22

84306071

KIT

Service, Rear Exterior Access Window, Incl 1, 5, 14, 17

1шт.

Optional Dealer Installed

1шт.

Выбрано товаров: 23
