Запчасти Case IH SR160 (90.151.AD[01]) - SEAT BELT, 2" LAP BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

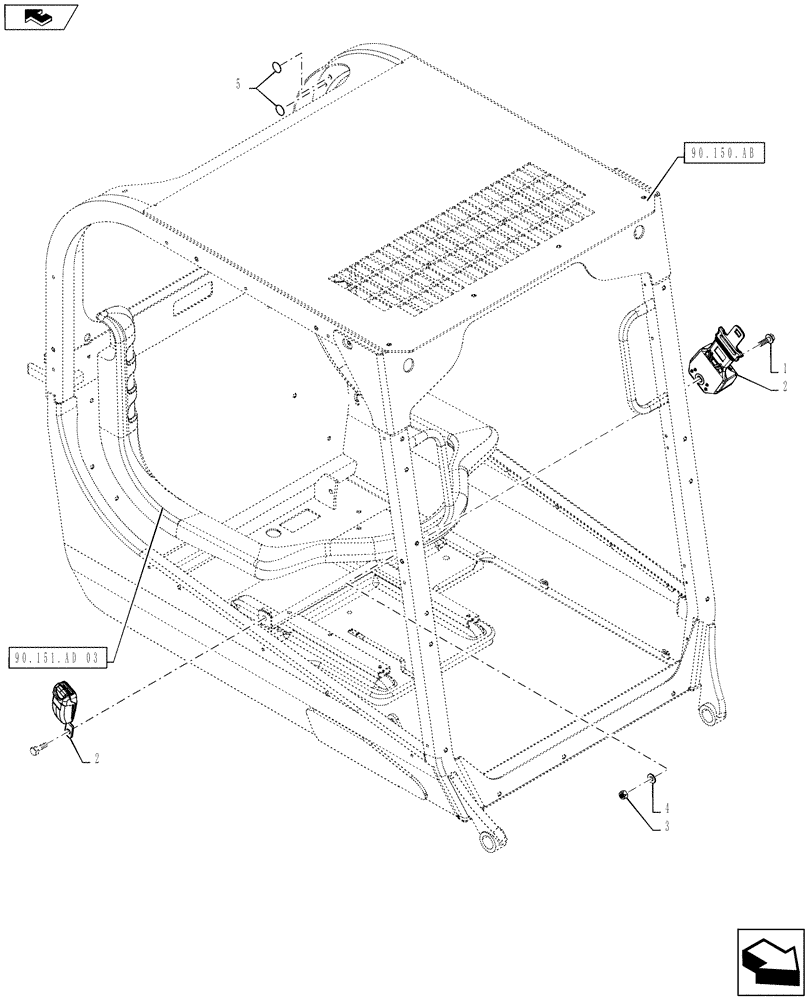

Схема запчастей Case IH SR160 - (90.151.AD[01]) - SEAT BELT, 2" LAP BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
home
2
5
90.151.ad 03
1
90.150.ab
4
2

Артикул

Название

Примечание

Количество

1

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

2

84174264

SEAT BELT,51mm W x 1447mm L

Case, 2 Point, 2" Wide

1шт.

3

86512554

NUT,M10 x 1.5, Cl 10

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10, 10.65mm x 23.0mm x 2.2mm, HTS, BORON, ZN

1шт.

5

414635A1

COVER,25.4mm OD x 0.51mm Thk

1" Dia, Gray, Plug Holes Used By Shoulder Belt

2шт.

Выбрано товаров: 5
