Запчасти Case IH SR160 (90.150.BD[01]) - CAB TILT LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS

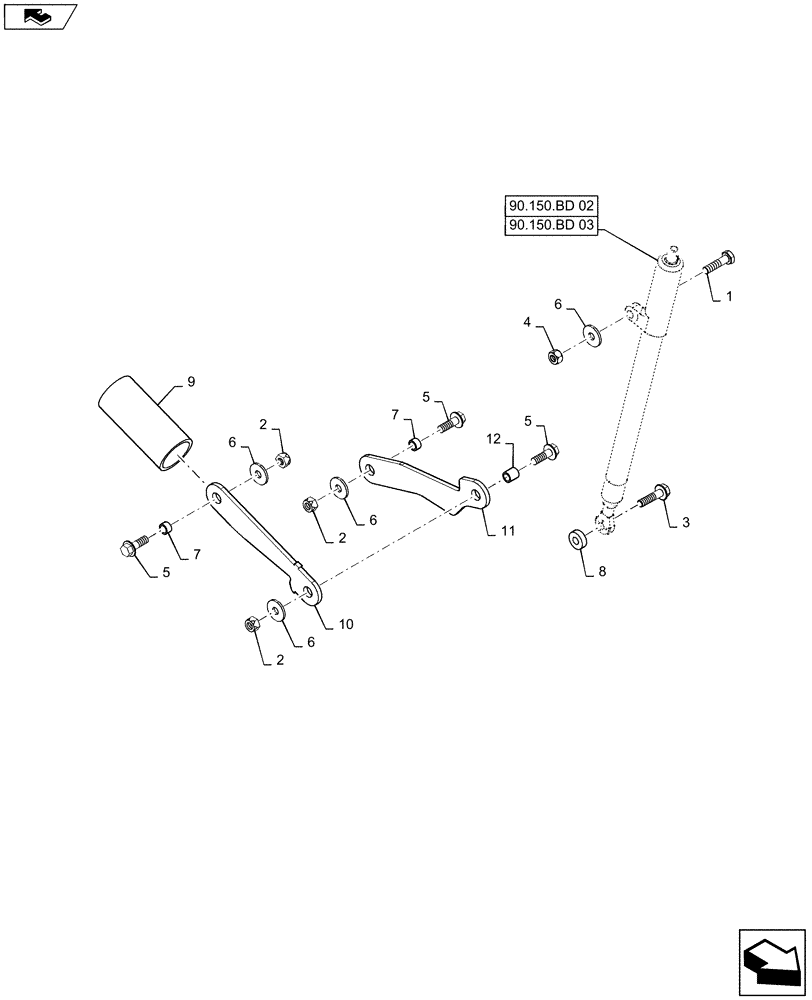

Схема запчастей Case IH SR160 - (90.150.BD[01]) - CAB TILT LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
6
7
2
5
4
11
12
6
7
6
2
2
9
5
90.150.bd 03
home
10
3
8
90.150.bd 02
6

Артикул

Название

Примечание

Количество

1

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

2

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

3

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

Flange, M10 X 40mm

1шт.

4

2979506

LOCK NUT,Prev Torque Hex, M10 x 1.25, Cl 10

M10

1шт.

5

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

7

84349662

10.8mm X 14.8mm X 8.35mm

SPACER,10.80mm ID x 14.80mm OD x 8.35mm

2шт.

8

47464479

SPACER,10.5mm ID x 25.4mm OD x 8mm L

10.5mm X 25.4mm X 8mm

1шт.

9

84309929

Locking Collar, Gray

TUBE

1шт.

10

84349605

Upper Locking Arm

PLATE

1шт.

11

84349612

Lower Locking Arm

PLATE

1шт.

12

84349661

10.8mm X 14.8mm X 16mm

SPACER,10.8mm ID x 14.8mm OD x 16mm L

1шт.

Выбрано товаров: 12
