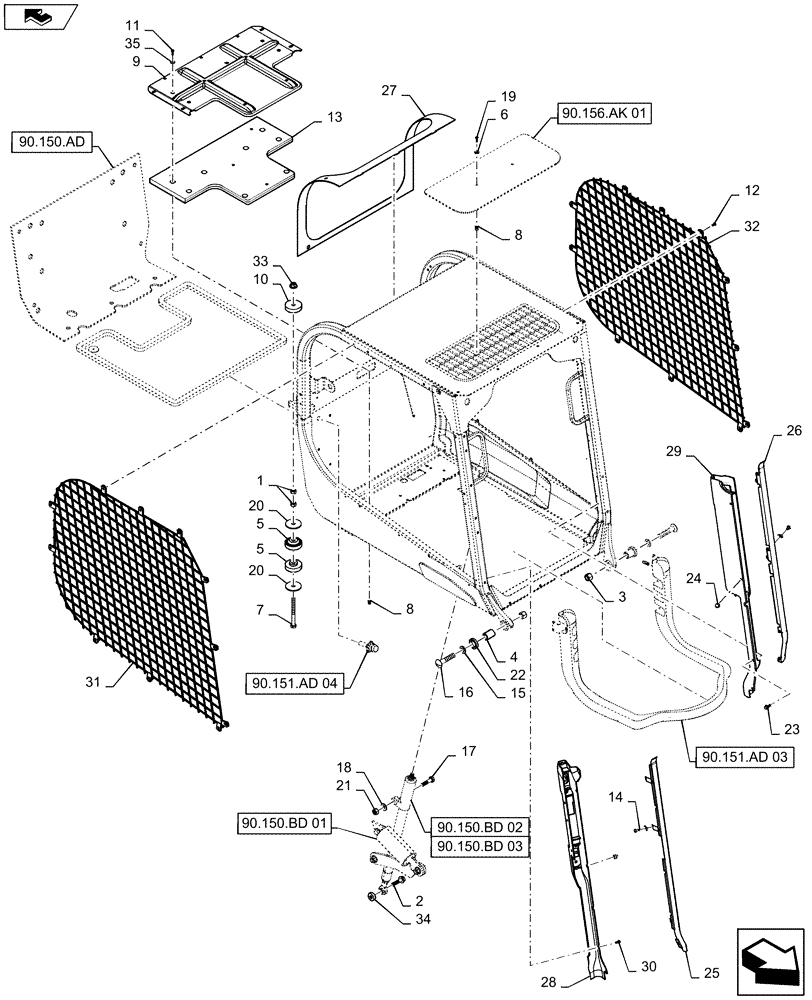

Запчасти Case IH SR160 (90.150.AB) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

392530

NUT,M16, Cl 10

4шт.

2

87698839

FLANGE BOLT,M10 x 40mm, Cl 10.9

1шт.

3

84010564

NUT,Prev Torque, M20 x 2.5 x 23mm, Cl 10

2шт.

4

84200848

Cab Isolator, Front

MOUNT

2шт.

5

84201266

ISOLATOR,16mm ID x 80mm OD x 41.5mm Thk

Engine Mount

4шт.

6

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

2шт.

7

87698773

BOLT,Hex, M16 x 160mm, Cl 10.9, Full Thd

2шт.

8

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

19шт.

9

84284728

SEAT

Pan, Gray

1шт.

10

84298254

PLATE

Rear Mount, Gray

2шт.

11

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

11шт.

12

84310724

RIVET,Button, 6.4mm OD x 15.9mm L

22шт.

13

84338534

SEAL,Bulk 30.48m

885mm

1шт.

14

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

6шт.

15

84365968

SEALING WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

16

84370842

CARRIAGE BOLT,Sht Sq Nk, M20 x 100mm, Cl 10.9, Full Thd

2шт.

17

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

1шт.

18

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

19

84375323

SCREW,Torx RWHD, M6 x 25mm, Cl 10.9, Full Thd, W/ Chem Lock

2шт.

20

87630175

WASHER,0.66" ID x 3" OD x 0.18" Thk

4шт.

21

2979506

LOCK NUT,Prev Torque Hex, M10 x 1.25, Cl 10

1шт.

22

84420168

SPACER,37mm ID x 50.8mm OD x 10mm L

2шт.

23

86625199

SELF-TAP SCREW,Hex, M6 x 1 x 13mm

8шт.

24

84473525

CROWN NUT,Hex, #10 – 24 x 10.32mm High

6шт.

25

47428342

RH Console, Gray

BRACKET

1шт.

26

84473542

BRACKET

LH Console, Gray

1шт.

27

84484008

CAB

Rops

1шт.

28

84543565

RH Console, Wheat, Years: -30-SEP-16

CONSOLE

1шт.

28

47920893

CONSOLE

RH Console, Wheat, Start Year: 01-OCT-16

1шт.

29

47406935

CONSOLE

LH Console, Wheat, Years: -30-SEP-16

1шт.

29

47920902

CONSOLE

LH Console, Wheat, Start Year: 01-OCT-16

1шт.

30

86625073

SPRING NUT,M6 x 1

6шт.

31

84583618

SCREEN

Side Rops, RH

1шт.

32

84583621

SCREEN

Side Rops, LH

1шт.

33

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

34

47464479

SPACER,10.5mm ID x 25.4mm OD x 8mm L

1шт.

35

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.
