Запчасти Case IH SR160 (90.120.AD[07]) - MECHANICAL SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

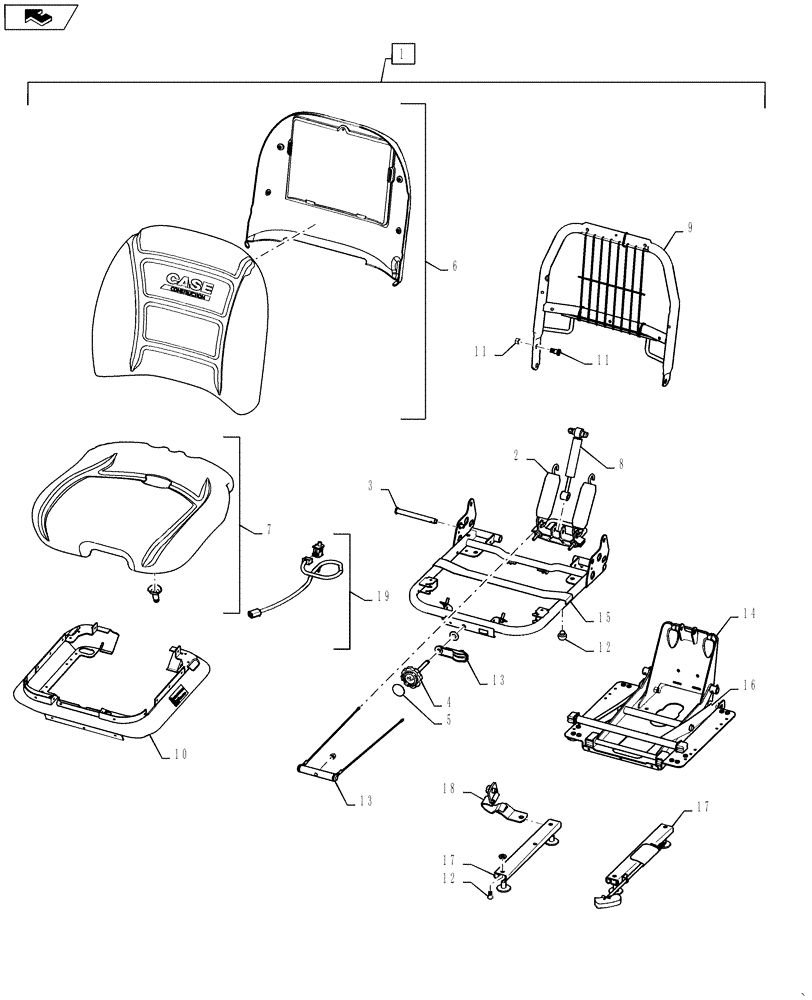

Схема запчастей Case IH SR160 - (90.120.AD[07]) - MECHANICAL SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
9
14
16
11
3
18
6
5
8
19
11
15
17
13
4
7
2
13
17
12
10
1
home

Артикул

Название

Примечание

Количество

1

84540521

Mechanical Suspension, Complete, Incl 2 - 19

SEAT

1шт.

2

84559391

SERVICE KIT

Spring And Saddle

1шт.

3

84559392

SERVICE KIT

Shaft And Bearing

1шт.

4

84559393

SERVICE KIT

Knob

1шт.

5

84540799

SERVICE KIT

Label Kit, Weight Adjust, Lumbar Adjust, Recliner

1шт.

6

84551069

SERVICE KIT

Back Cushion, Includes Back Panel

1шт.

7

84551066

SERVICE KIT

Seat Base Cushion, Includes Water Drain

1шт.

8

84559399

SERVICE KIT

Shock Absorber

1шт.

9

84559401

SERVICE KIT

Back Rest Frame

1шт.

10

84559402

SERVICE KIT

Boot

1шт.

11

84559403

SERVICE KIT

Pivot Bolt

1шт.

12

84559404

SERVICE KIT

Bumper

1шт.

13

84559405

SERVICE KIT

Weight Adjustment

1шт.

14

84559406

SERVICE KIT

Suspension Base Assembly

1шт.

15

84559408

SERVICE KIT

Lower Seat Frame

1шт.

16

84559412

SERVICE KIT

Linkage Assembly

1шт.

17

84559416

SERVICE KIT

Adjustment Slides

1шт.

18

84559418

SERVICE KIT

Seat Tether

1шт.

19

84559411

SERVICE KIT

Seat Switch, Includes Seat Harness

1шт.

Выбрано товаров: 19
