Запчасти Case IH SR160 (90.116.AX[01]) - CHASSIS VENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

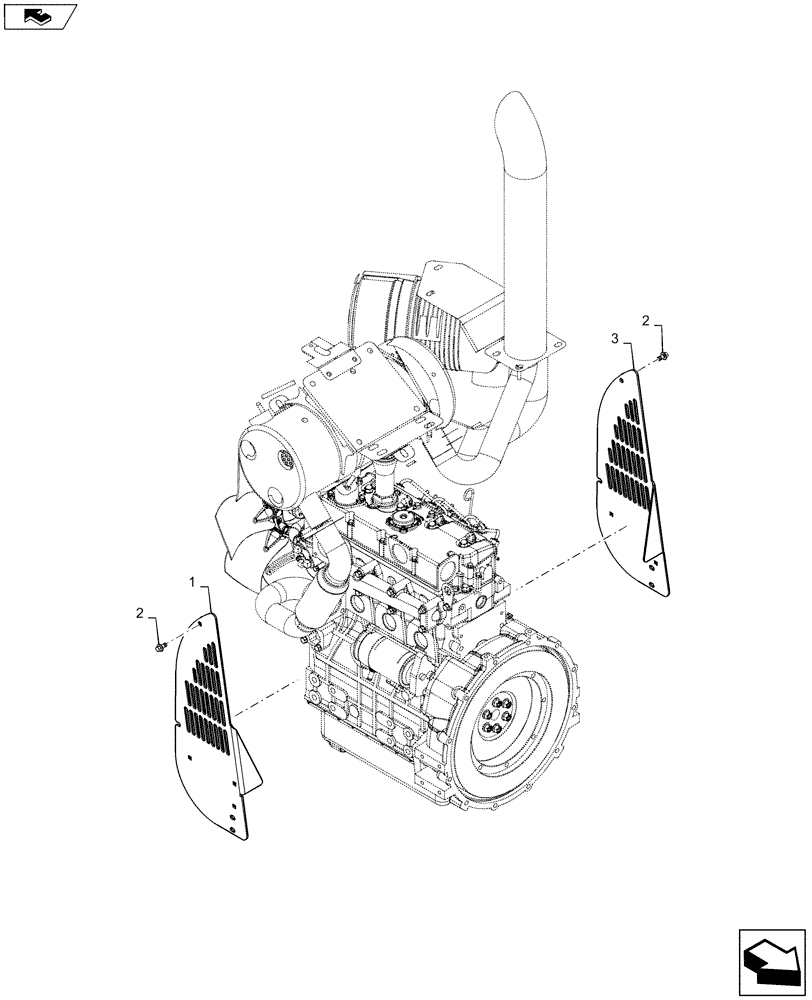

Схема запчастей Case IH SR160 - (90.116.AX[01]) - CHASSIS VENT PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
home
1
2

Артикул

Название

Примечание

Количество

1

84354588

RH, Chassis

COVER PLATE

1шт.

2

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

3

84351125

LH, Chassis

COVER PLATE

1шт.

Выбрано товаров: 3
