Запчасти Case IH SR160 (90.100.BJ) - REAR HOOD AND CHASSIS ACCESS COVER 23-JUN-2017 AND NEWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

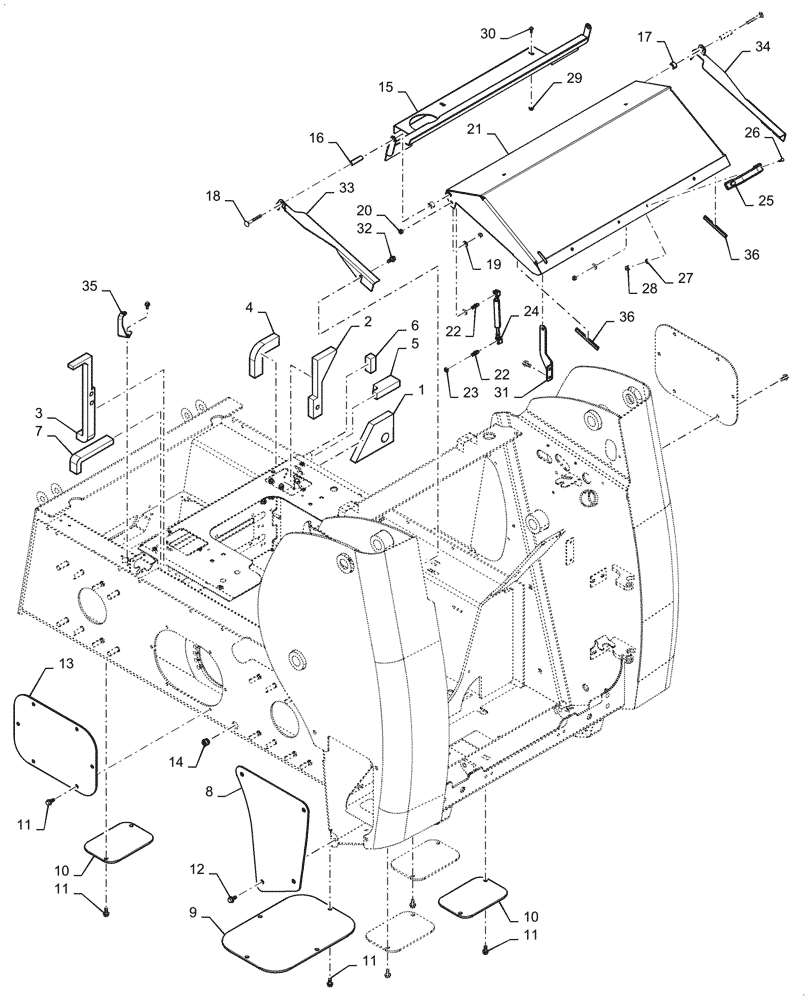

Схема запчастей Case IH SR160 - (90.100.BJ) - REAR HOOD AND CHASSIS ACCESS COVER 23-JUN-2017 AND NEWER (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
35
8
33
2
10
23
17
31
13
20
15
18
7
36
11
28
26
5
4
10
3
11
30
19
12
29
36
32
11
9
24
6
1
21
34
22
11
14
25
27
16

Артикул

Название

Примечание

Количество

1

84323503

RH Filler

FOAM

1шт.

2

84372931

FOAM

RH Heel Plate

1шт.

3

48013158

LH Heel Plate

FOAM INSULATION

1шт.

4

47874957

FOAM INSULATION,177.8mm L x 38.1mm W x 25.4mm Thk

Chassis Filler

1шт.

5

47875087

FOAM INSULATION

RH Upper Chassis Filler

1шт.

6

84372933

Chassis Filler

FOAM

1шт.

7

47827322

Bulkhead Seal, LH

FOAM

1шт.

8

84306104

Battery

COVER

1шт.

9

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

10

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

4шт.

11

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

24шт.

12

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

13

84295151

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

14

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

15

47518029

Rear Fixed, Gray

HOOD

1шт.

16

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

2шт.

17

87429698

SPACER

Hood

2шт.

18

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

19

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

21

47844688

Tilt AC, Gray

HOOD

1шт.

22

189609A1

BALL STUD,M8 x 1.25

1шт.

22

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

, Start Year: 14-OCT-16

2шт.

23

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

24

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Spring Hood Assist

1шт.

25

406256A1

HANDLE

Rear Hood

1шт.

26

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

27

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

28

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

29

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

30

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

31

47492070

Hood Lock Tab, Gray

ANGLE

1шт.

32

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

33

47499445

Hood Stop, LH Gray

ANGLE

1шт.

34

47499447

Hood Stop, RH Gray

ANGLE

1шт.

35

47842392

Fuse Cover, Gray

BRACKET

1шт.

36

87702286

Cut To Length, 220mm L

TRIM,Bulk, 1/8" x 30480mm L

1шт.

Выбрано товаров: 37
