Запчасти Case IH SR160 (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

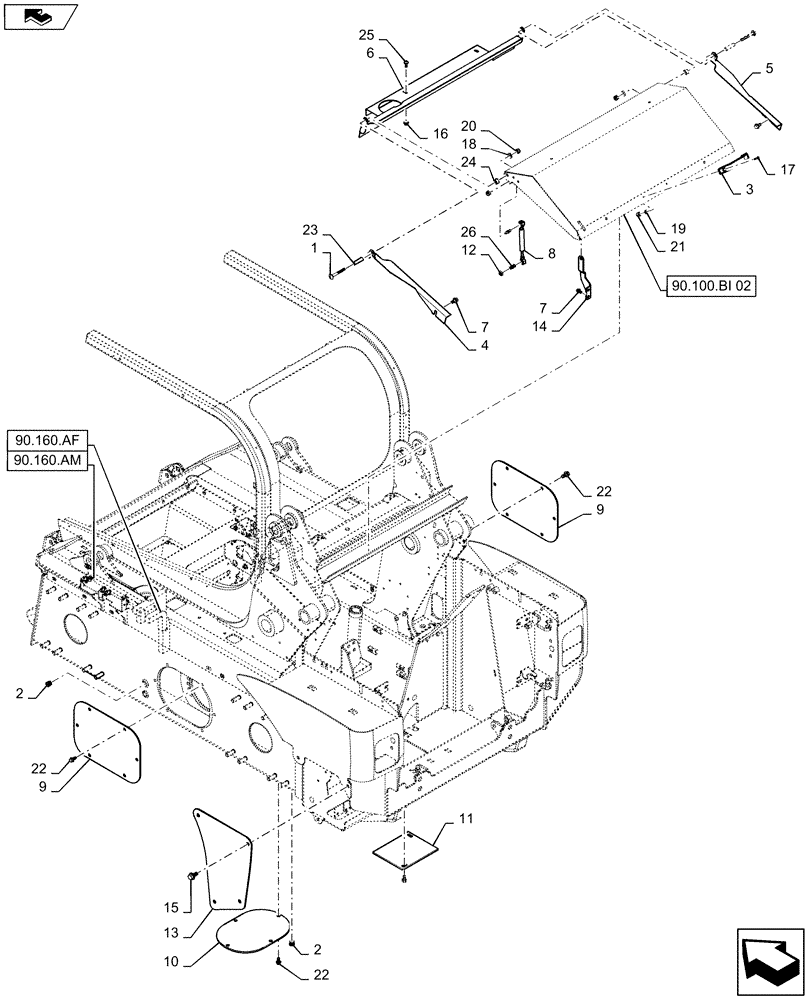

Схема запчастей Case IH SR160 - (90.100.BI[01]) - REAR HOOD AND CHASSIS ACCESS COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
90.160.am
2
3
19
22
15
90.100.bi 02
4
13
11
7
24
16
1
22
9
18
2
20
17
14
26
10
home
8
25
5
90.160.af
9
21
23
7
6
12

Артикул

Название

Примечание

Количество

1

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

2

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

4шт.

3

406256A1

HANDLE

Rear Hood

1шт.

4

47499445

Hood Stop, LH

ANGLE

1шт.

5

47499447

Hood Stop, RH

ANGLE

1шт.

6

47518029

Rear Fixed

HOOD

1шт.

7

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

8

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Hood Assist

1шт.

9

84295151

Chain Tank

COVER PLATE,400mm L x 280mm W x 4.75mm Thk

2шт.

10

84299800

Lower

COVER PLATE

1шт.

11

84299809

Plumbing Access Cover

COVER PLATE

1шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

13

84306104

Battery

COVER

1шт.

14

84583848

PLATE

Hood Lock Tab

1шт.

15

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

16

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

17

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

19

86625264

LOCK WASHER,Ext Tooth, M5

2шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

21

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

22

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

18шт.

23

87302564

SPACER,9.2mm ID x 13.7mm OD x 50.8mm L

Hood

2шт.

24

87429698

SPACER

Hood

2шт.

25

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

26

189609A1

BALL STUD,M8 x 1.25

2шт.

Выбрано товаров: 26
