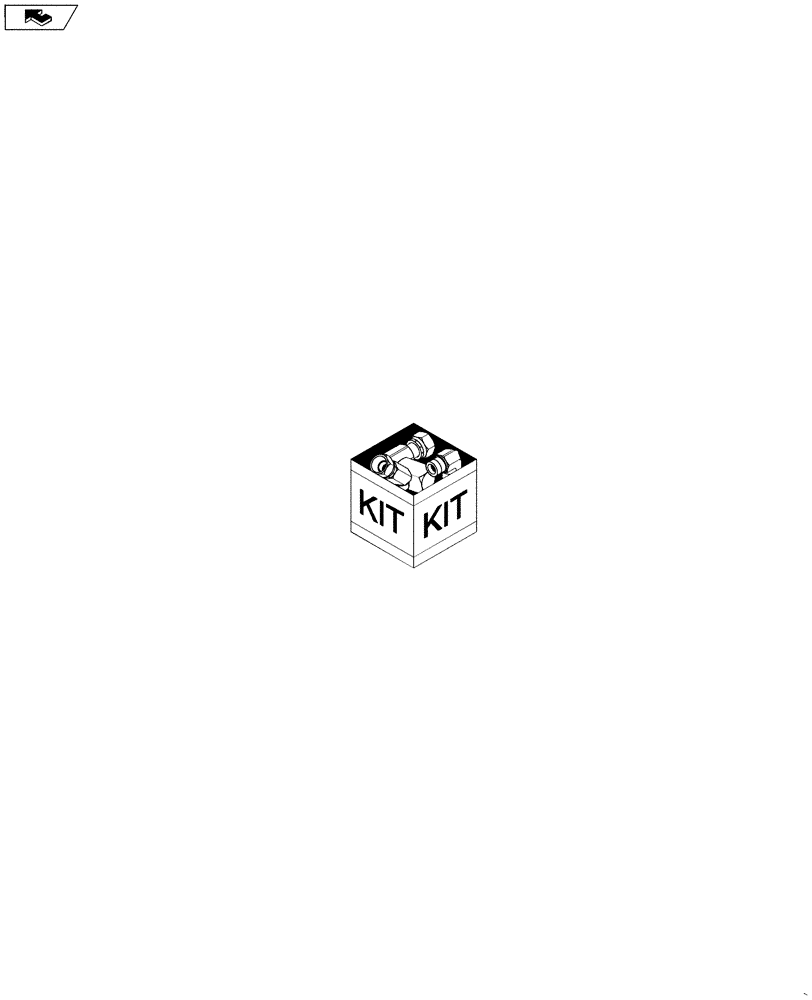

Запчасти Case IH SR160 (88.010.01) - DIA KIT, ASPIRATOR (88) - ACCESSORIES

1

84539023

SERVICE KIT

Aspirator, Incl 2 - 13

1шт.

2

84539024

INSTRUCTION

Install

1шт.

3

406089A2

VALVE

Aspirator Check

1шт.

4

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

5

84539175

TUBE

Exhaust, DPF To Tailpipe

1шт.

6

84539182

HOSE

Tailpipe To Aspirator

1шт.

7

84539186

HOSE

Air Cleaner To Aspirator

1шт.

8

84539190

MOUNTING PLATE

Aspirator, Grey

1шт.

9

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

10

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

1шт.

11

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

13

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.
