Запчасти Case IH SR160 (55.404.CY[01]) - EU ROAD LIGHTS (55) - ELECTRICAL SYSTEMS

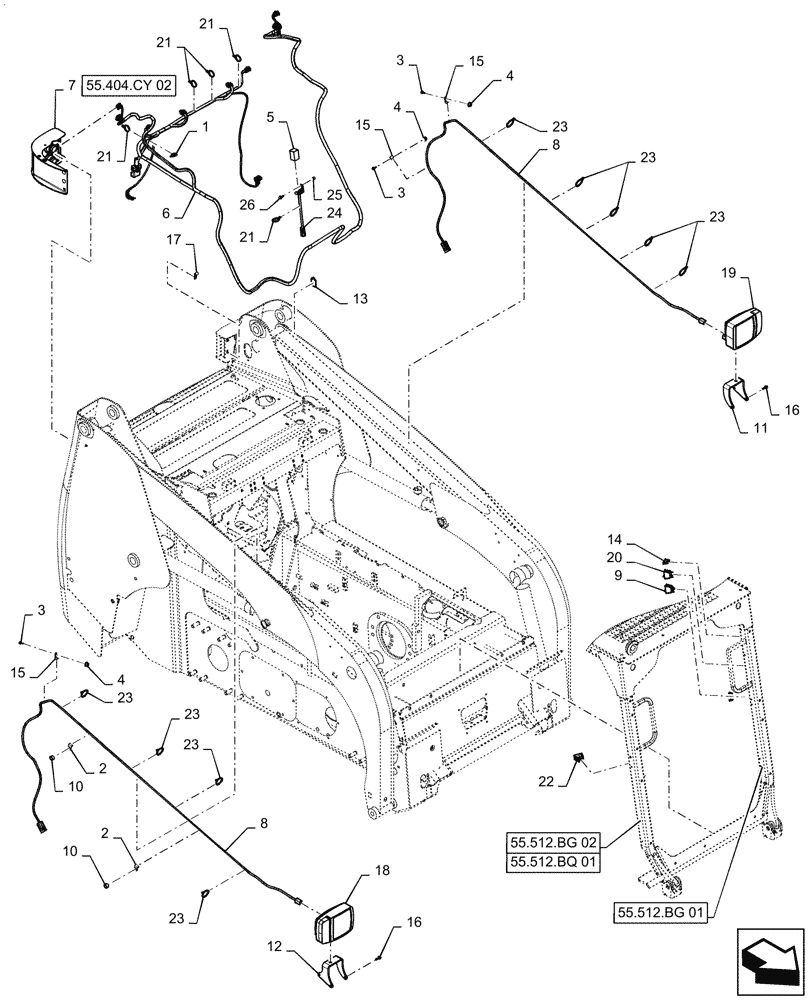

Схема запчастей Case IH SR160 - (55.404.CY[01]) - EU ROAD LIGHTS (55) - ELECTRICAL SYSTEMS
55.512.bq 01
18
16
21
14
25
13
21
4
2
23
12
23
19
8
7
10
3
17
6
10
23
23
21
20
15
15
5
24
23
9
1
23
16
11
15
4
4
3
26
8
23
22
21
2
3
55.512.bg 01
55.404.cy 02
55.512.bg 02

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

2шт.

2

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

Insulated

3шт.

3

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

5

9821783

FLASHER UNIT

1шт.

6

47821008

Rear Road Jumper

WIRE HARNESS

1шт.

7

47941860

Rear Road

LAMP

1шт.

8

84262453

FE Boom

WIRE HARNESS

2шт.

9

84263153

SWITCH

Loader Lockout

1шт.

10

84306875

SPACER,11.1mm ID x 15.9mm OD x 9.5mm L

3шт.

11

84354214

Light LH

BRACKET

1шт.

12

84354216

Light RH

BRACKET

1шт.

13

84416164

FOAM INSULATION

Upper Chassis

2шт.

14

86604657

INDICATOR, TURN SIGN

1шт.

15

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

Insulated

6шт.

16

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

6шт.

17

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

Insulated

2шт.

18

87572859

LAMP

Combination Right

1шт.

19

87572860

LAMP

Combination Left

1шт.

20

87634133

SWITCH

Hazard lights

1шт.

21

87668737

CABLE TIE,203.2mm L, Nylon, Black

5шт.

22

131691A1

ROCKER SWITCH

Front & Rear Coupler

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

12шт.

24

47972152

JUMPER

Wire Harness, Flasher

1шт.

25

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

26

86639263

BOLT,Hex, M5, Cl 8

1шт.

Выбрано товаров: 26
