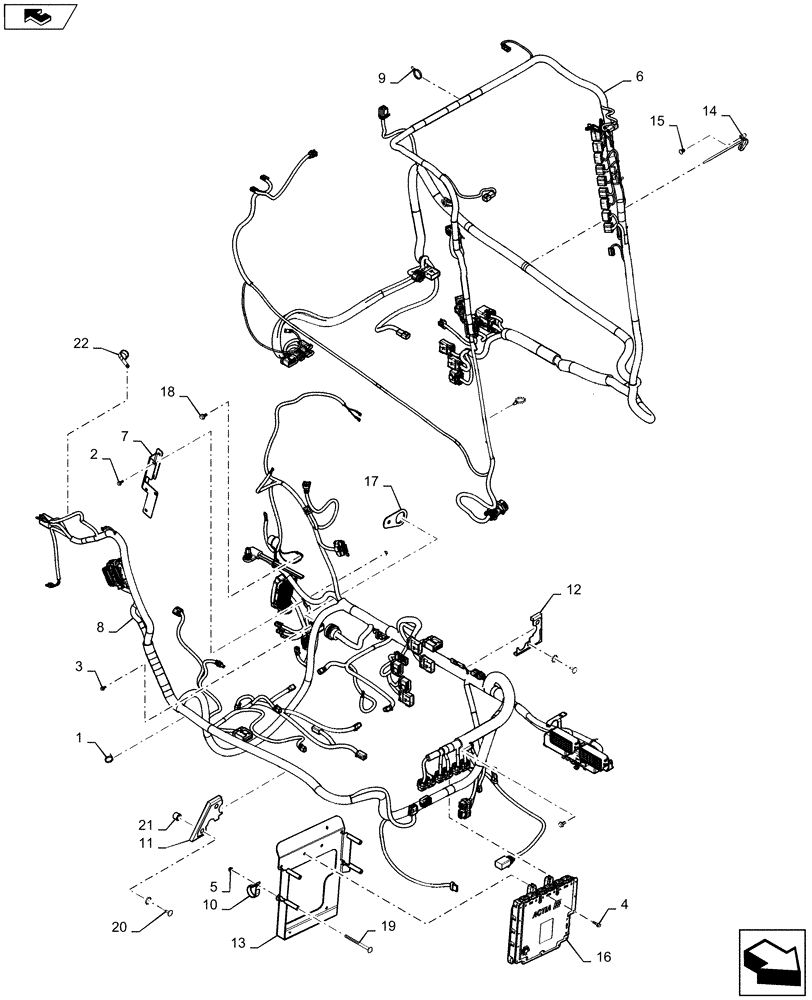

Запчасти Case IH SR160 (55.101.AC[04]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB (24-AUG-2015 & PRIOR) (55) - ELECTRICAL SYSTEMS

1

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

2

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

3

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

4

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

11шт.

6

47385476

Cab E-H

WIRE HARNESS

1шт.

7

47448709

Relay Mounting

BRACKET

1шт.

8

47523491

Chassis E-H

WIRE HARNESS

1шт.

9

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree

1шт.

10

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

38.1mm

2шт.

11

84323728

Assy, LH

SEAL

1шт.

12

84323729

Assy, LH

SEAL

1шт.

13

84332287

ECM

BRACKET

1шт.

14

84420746

CABLE TIE,403.9mm L, Nylon

0.50" DIA

40шт.

15

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

40шт.

16

84529539

UCM

ECU

1шт.

16

84529539R

Reman For New P/N 84529539

REMAN ELECT CONTROL

1шт.

16

84529539C

Return Number

CORE-ELECTRONIC CONT

1шт.

17

84541427

Engine Harness

BRACKET

1шт.

18

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.

19

86512442

CARRIAGE BOLT,Sht Sq Nk, M6 x 80mm, Cl 8.8

M6 X 80

4шт.

20

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

21

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

22

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.
