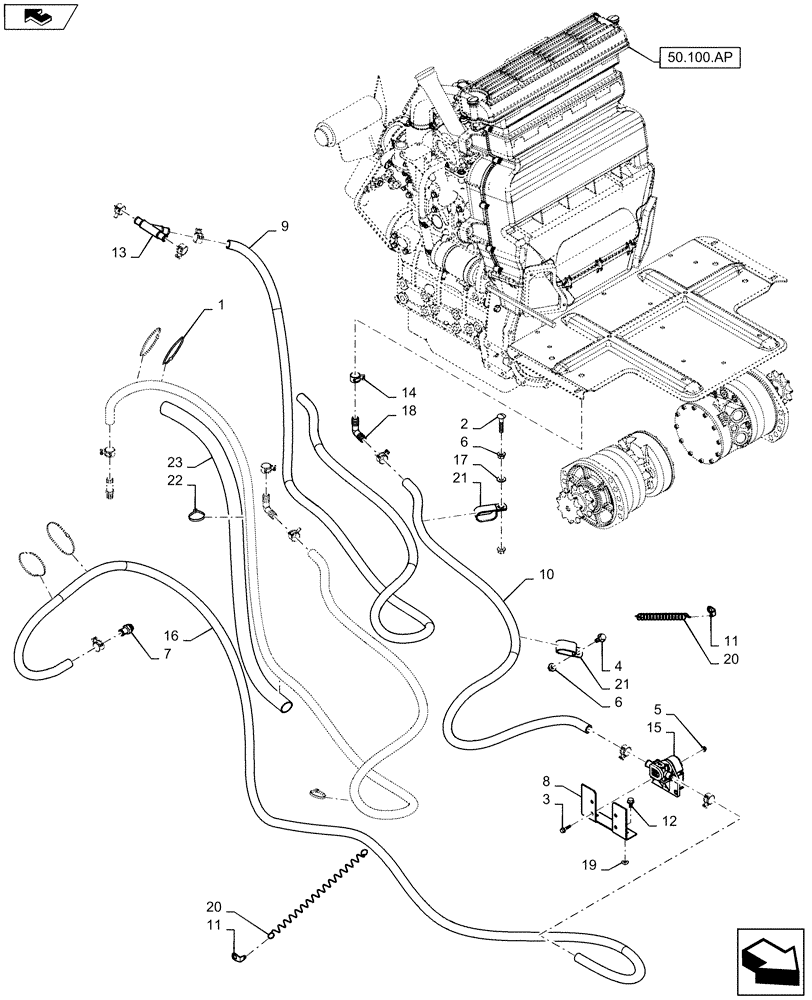

Запчасти Case IH SR160 (50.100.AC[02]) - HEATING SYSTEM LINES (50) - CAB CLIMATE CONTROL

1

263117

CABLE TIE,292.1mm L, Nylon, Black

4шт.

2

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

3

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

4

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

6

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

7

47453043

5/8" Hose Barb x M16 - 1.5

FITTING,M16 X 1.5 – 5-5/8”, Barb

1шт.

8

84319469

Water Valve

BRACKET

1шт.

9

84360983

Heater Supply, Guarded

HOSE ASSY.

1шт.

10

84360984

Heater Return, Guarded

HOSE ASSY.

1шт.

11

84361522

BRACKET

Spring Mount

2шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

13

86530043

FITTING,5/8” Y-Fitting

"Y" Style

1шт.

14

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

Hose

10шт.

15

87520839

VALVE

Water

1шт.

16

86997299

HEATER HOSE,15.5mm ID x 15240mm L

Heater, Bulk, Cut To Length Required

1шт.

17

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

18

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

20

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

Extension

2шт.

21

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

8" Nylon

3шт.

23

87441006

TUBE,4.6mm ID x 1350mm L

Hose

1шт.
