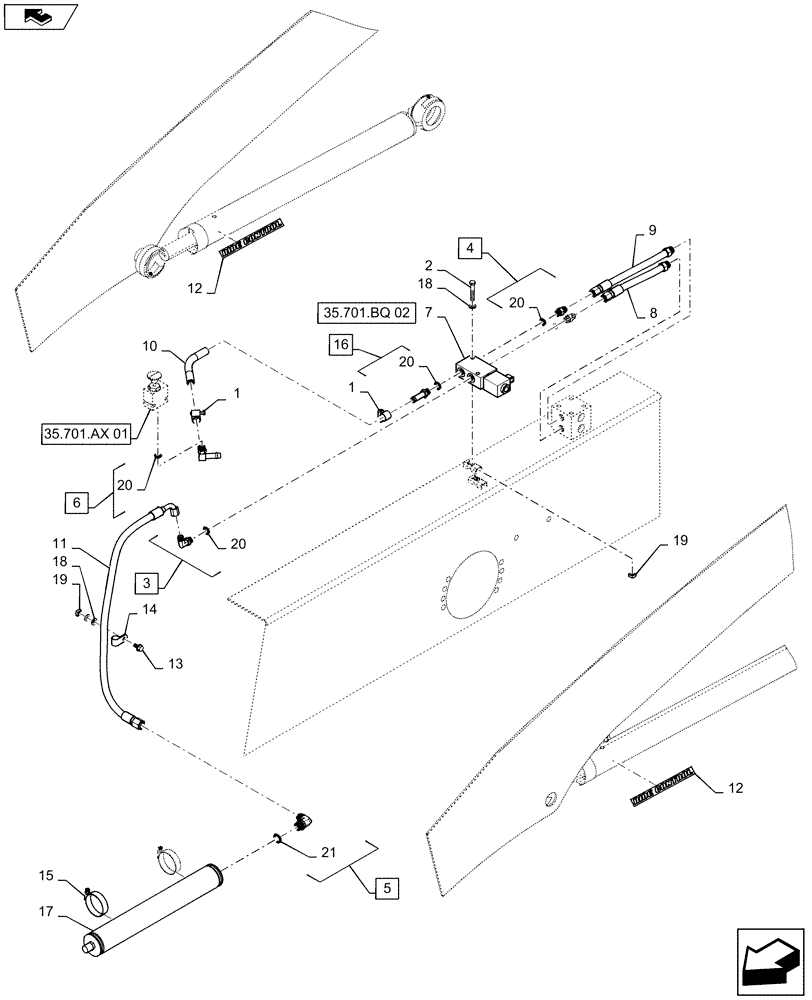

Запчасти Case IH SR160 (35.701.BR) - RIDE CONTROL LINES (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

2шт.

2

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 20

1шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 20

2шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 21

1шт.

6

84187294

1/2" Hose Barb x 1/2" Hose Barb x 9/16" ORB, Incl 20, Years: -02-OCT-16

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1шт.

6

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

, Start Year: 03-OCT-16

1шт.

7

84256404

Ride Control, Years: -02-OCT-16

HYDRAULIC VALVE

1шт.

7

47712515

VALVE

Ride Control, Start Year: 03-OCT-16

1шт.

8

84319927

Ride Control Valve To Manifold

HOSE ASSY.,9.53mm ID x 245mm L, SAE 100R17

1шт.

9

84319928

Ride Control Valve To Manifold

HOSE ASSY.,9.53mm ID x 260mm L, SAE 100R17

1шт.

10

84375903

HOSE,12.7mm ID x 154mm L

Ride Control Valve To Override, Years: -02-OCT-16

1шт.

10

47972717

Ride Control Valve To Override, Start Year: 03-OCT-16

HYD TUBE

1шт.

11

84375904

Ride Control Valve To Accumulator

HOSE ASSY.,9.53mm ID x 790mm L, SAE 100R17

1шт.

12

84493112

Ride Control

DECAL

2шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

14

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

15

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

16

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

Incl 20

1шт.

17

87403797

ACCUMULATOR,275 Bar, 0.75L

Ride Control

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

19

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

5шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" ORB

1шт.
