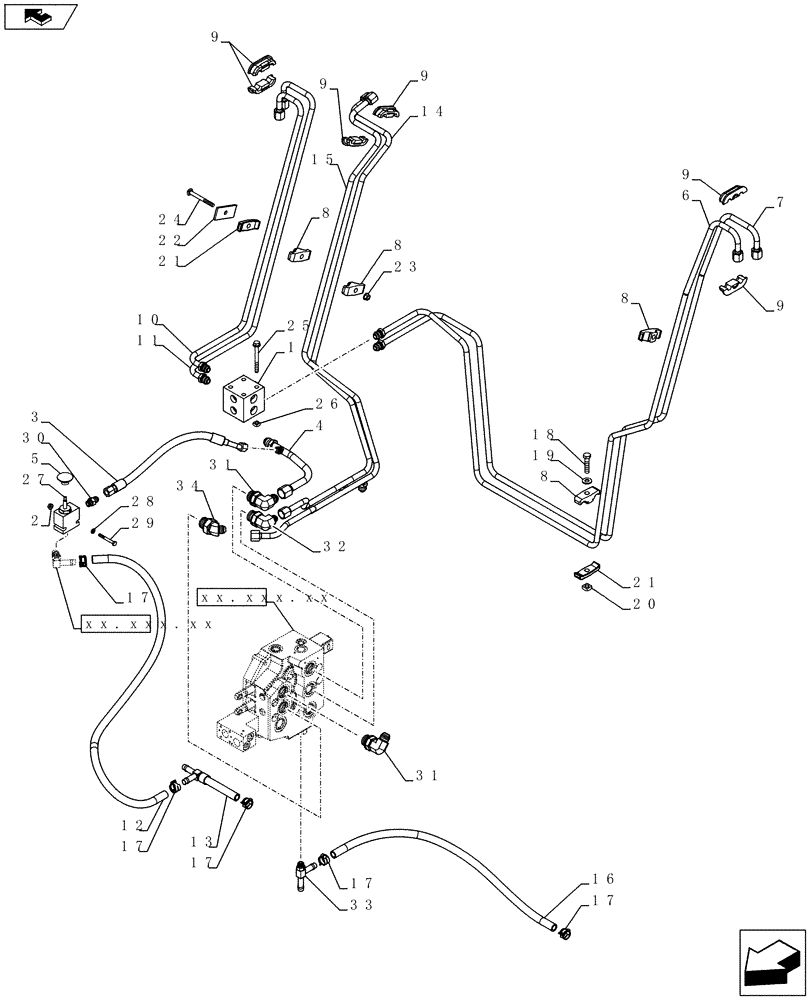

Запчасти Case IH SR160 (35.701.AX[01]) - LOADER VALVE PLUMBING (35) - HYDRAULIC SYSTEMS

1

84258823

HYDRAULIC MANIFOLD

1шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

3

84296501

Override

HOSE ASSY.,9.53mm ID x 444mm L, SAE 100R16

1шт.

4

84293494

Lift Loader Valve To Manifold

HYD TUBE

1шт.

5

87522292

KNOB

Knob, Override Valve

1шт.

6

84336620

Tube, Lift, Manifold To Left Arm

HYD TUBE

1шт.

7

84336616

Tube, Lower, Manifold To Left Arm

HYD TUBE

1шт.

8

D120679

CLAMP,Tube, 1/2"

1/2in

4шт.

9

376523A2

SUPPORT,1/2"

6шт.

10

84293506

Tube, Lower, Manifold To Right Arm

HYD TUBE

1шт.

11

84331818

Tube, Lift, Manifold To Right Arm

HYD TUBE

1шт.

12

84309593

Override To Brake Valve Drain

HOSE,12.7mm ID x 1005mm L

1шт.

13

84259682

Incl Hose

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

14

84335145

Tube, Tip, Loader Valve To Right Arm

HYD TUBE

1шт.

15

84335144

Tube, Tip, Loader Valve To Right Arm

HYD TUBE

1шт.

16

84309595

Small Valve To Drain Manifold

HOSE,12.7mm ID x 745mm L

1шт.

17

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

18

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

20

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

21

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

2шт.

22

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

1шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

24

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

25

86705425

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

26

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

27

84294239

Boom Override

VALVE

1шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Years: -01-NOV-13

2шт.

29

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

30

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

31

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

2шт.

32

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

1шт.

33

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

1шт.

34

84289681

45 ELBOW,3/4" - 16 JIC x 1-1/16" - 12 ORB

1шт.
