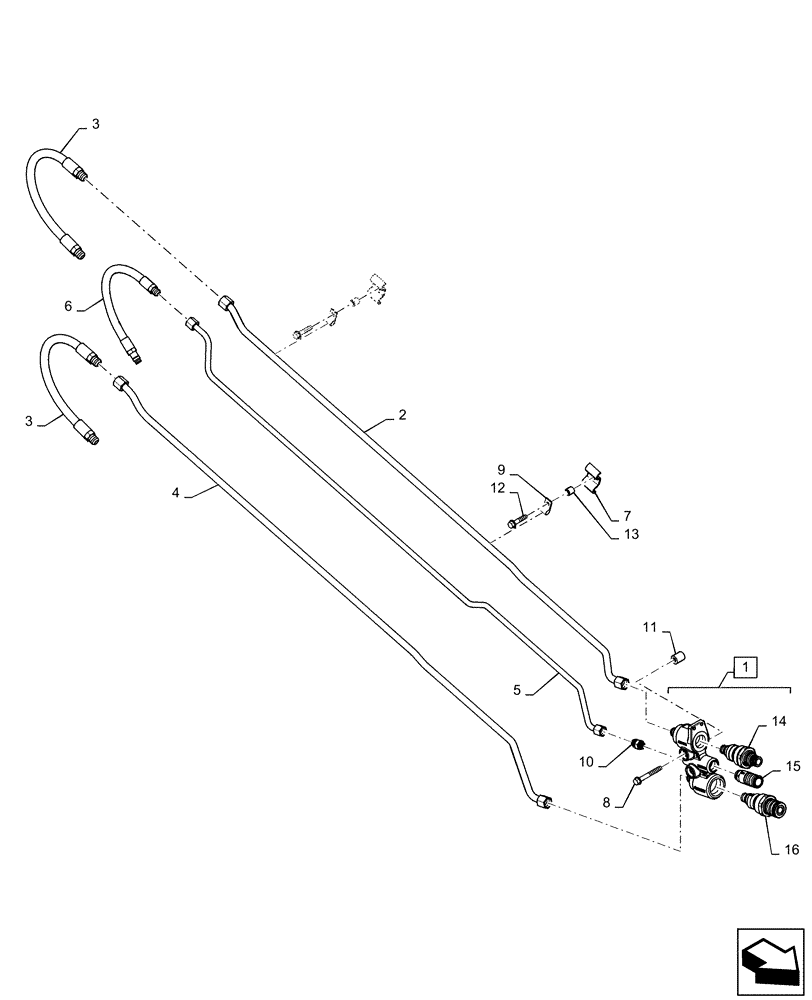

Запчасти Case IH SR160 (35.525.AA[02]) - AUXILIARY HYDRAULIC, ARM PLUMBING (35) - HYDRAULIC SYSTEMS

1

47396759

VALVE

Connect Under Pressure, Incl 14 - 16

1шт.

2

47415676

Aux Male

HYD TUBE

1шт.

3

47415678

Aux

HYDRAULIC HOSE

1шт.

4

47415679

Aux Female

HYD TUBE

2шт.

5

47415683

Case Drain

HYD TUBE

2шт.

6

47415685

Case Drain

HYDRAULIC HOSE

2шт.

7

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

8

84382748

SCREW,HWH, 3/8" - 16 x 3-1/2"

2шт.

9

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

10

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

11

87013910

SPACER,1/2" Pipe x 1"

2шт.

12

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

1шт.

13

87340800

SPACER,5/8" Tube x 15.88mm

1шт.

14

47396760

COUPLING,1/2" Male

1шт.

15

47396762

COUPLING,3/8" Female

1шт.

16

47396761

COUPLING,1/2" Female

1шт.
