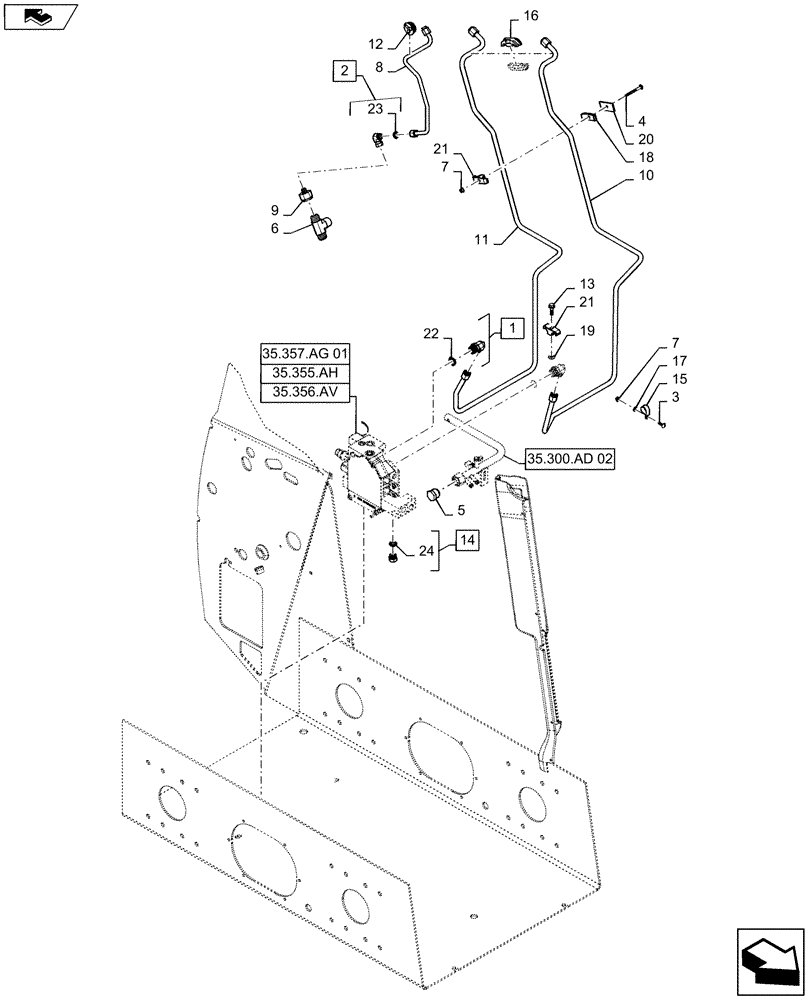

Запчасти Case IH SR160 (35.525.AA[01]) - AUXILIARY HYDRAULIC, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

1

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 22

2шт.

2

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

Incl 23

1шт.

3

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

366046

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 80mm, Cl 8.8

1шт.

5

9790527

PLUG,1-5/16" - 12 JIC

1шт.

6

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

7

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

8

47431077

Case Drain, Chassis

RIGID TUBE

1шт.

9

84278113

REDUCER FITTING,37 Degree -16 Female x 37 Degree -8 Male

Adapter

1шт.

10

84293518

Auxiliary Hydraulic, Loader Valve To LH Arm

TUBE

1шт.

11

84293522

Auxiliary Hydraulic, Loader Valve To LH Arm

TUBE

1шт.

12

84383452

Tube

GROMMET

1шт.

13

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl 24

1шт.

15

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

87018001

SUPPORT

Hydraulic Tube

2шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

18

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Tube

1шт.

19

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

20

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Clamp

1шт.

21

D120613

CLAMP,20mm ID

Tube

2шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16" ORB

2шт.

23

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4" ORB

1шт.

24

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8" ORB

1шт.
