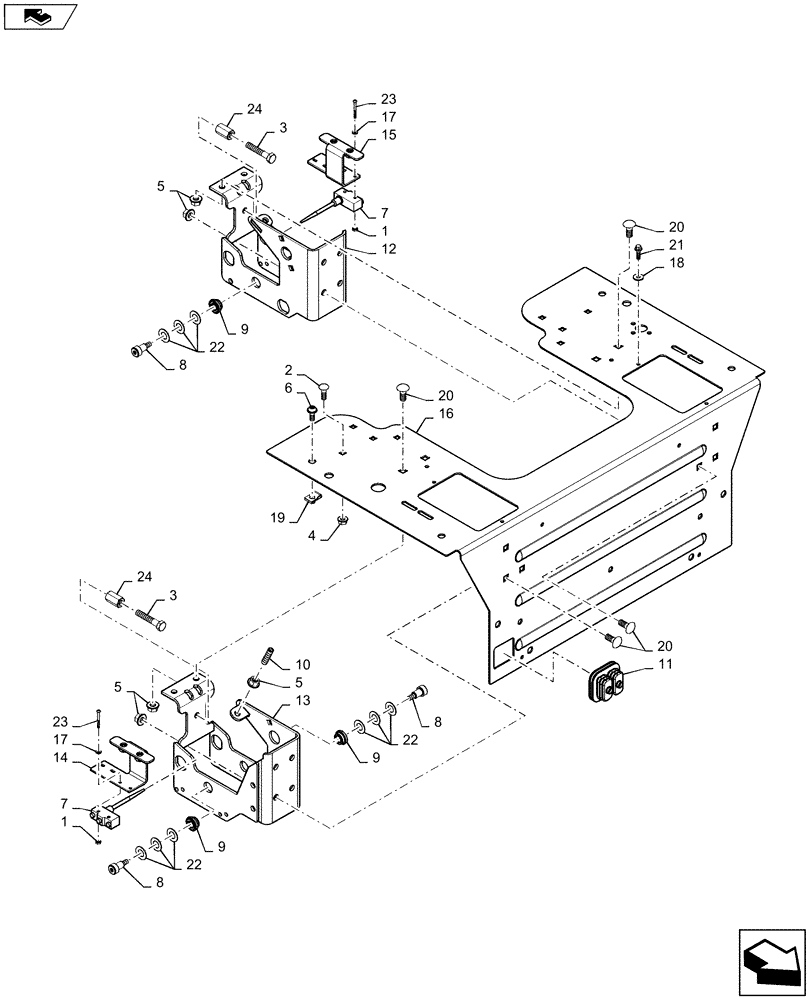

Запчасти Case IH SR150 (29.200.AI[04]) - HANDLE MOUNTING, FOOT CONTROLS (29) - HYDROSTATIC DRIVE

1

280859

NUT,Keps, #6-32

4шт.

2

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

412217

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8, Full Thd

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

12шт.

6

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

12шт.

7

84239537

Handle Position

SWITCH

2шт.

8

84291864

BOLT,M10 x 1.5 x 28mm

Handle Pivot

4шт.

9

84291865

BUSHING

Handle Pivot

4шт.

10

84345494

SET SCREW,Hex Socket, M10 x 1.5 x 40mm, Full Thd, Cl 45H

2шт.

11

84355747

BOOT

Foot Pedal Cables

1шт.

12

47376487

LH Handle

MOUNT

1шт.

12

47709892

LH Handle, Start Year: 23-APR-14

MOUNT

1шт.

13

47376488

RH Handle

MOUNT

1шт.

13

47709890

RH Handle, Start Year: 23-APR-14

MOUNT

1шт.

14

47553741

Backup Alarm Switch, RH

BRACKET

1шт.

15

47553746

BRACKET

Backup Alarm Switch, LH

1шт.

16

84373701

Removable Heel

PLATE

1шт.

17

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

18

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

19

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

8шт.

20

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

10шт.

21

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

4шт.

22

87026182

WASHER,0.53" ID x 1" OD x 0.03" Thk

12шт.

23

87319756

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-3/8"

4шт.

24

130105A1

NUT,Hex Coupling, M10 x 1.5 x 30mm

2шт.
