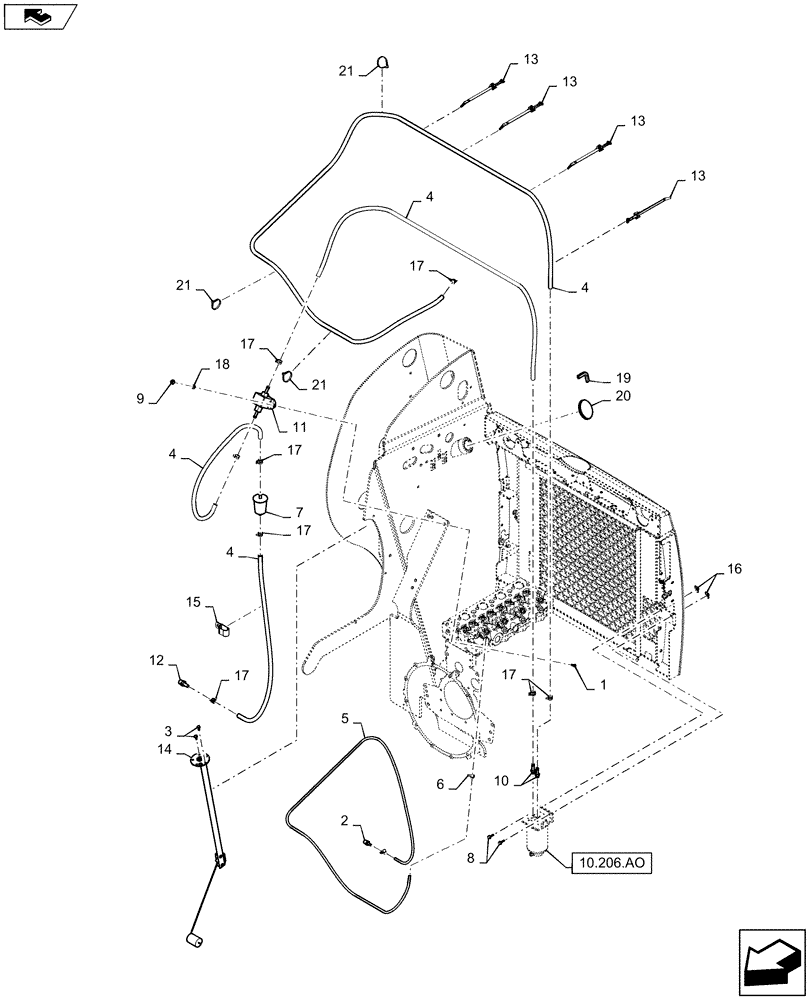

Запчасти Case IH SR150 (10.210.AF) - FUEL LINE & INLINE FILTER (10) - ENGINE

1

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

2

223593

FITTING,1/4" NPTF x 3/16" Hose Barb

1шт.

3

281050

SELF-TAP SCREW,#10-24 x 15.44mm OAL

5шт.

4

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

20.2ft

1шт.

5

291260

HOSE,5/32" ID

6.8ft

1шт.

6

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

7

9611973

FUEL FILTER

In-Line

1шт.

8

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

2шт.

9

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

10

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

2шт.

11

84130988

FUEL PUMP,12V, 1.4A

Electric Lift

1шт.

12

84193282

5/16" ID X 3/8" NPTF

FITTING,3/8" NPTF x 5/16" Hose Barb

1шт.

13

84259663

CABLE TIE,228.6mm L, Nylon, Black

Tie, 228mm

4шт.

14

84284998

Fuel Level, Swing Arm

SENSOR

1шт.

15

L302731

CLAMP,19mm D Clamping Pipes

Double 19.1 Dia

1шт.

16

86625073

SPRING NUT,M6 x 1

2шт.

17

87436932

CLAMP,13.9mm - 15.5mm, Spring

8шт.

18

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

19

87702286

85.3mm, Edge Channel

TRIM,Bulk, 1/8" x 30480mm L

1шт.

20

H436887

CAP

Fuel Cap

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
