Запчасти Case IH SR150 (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (18-SEP-2015 & NEWER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

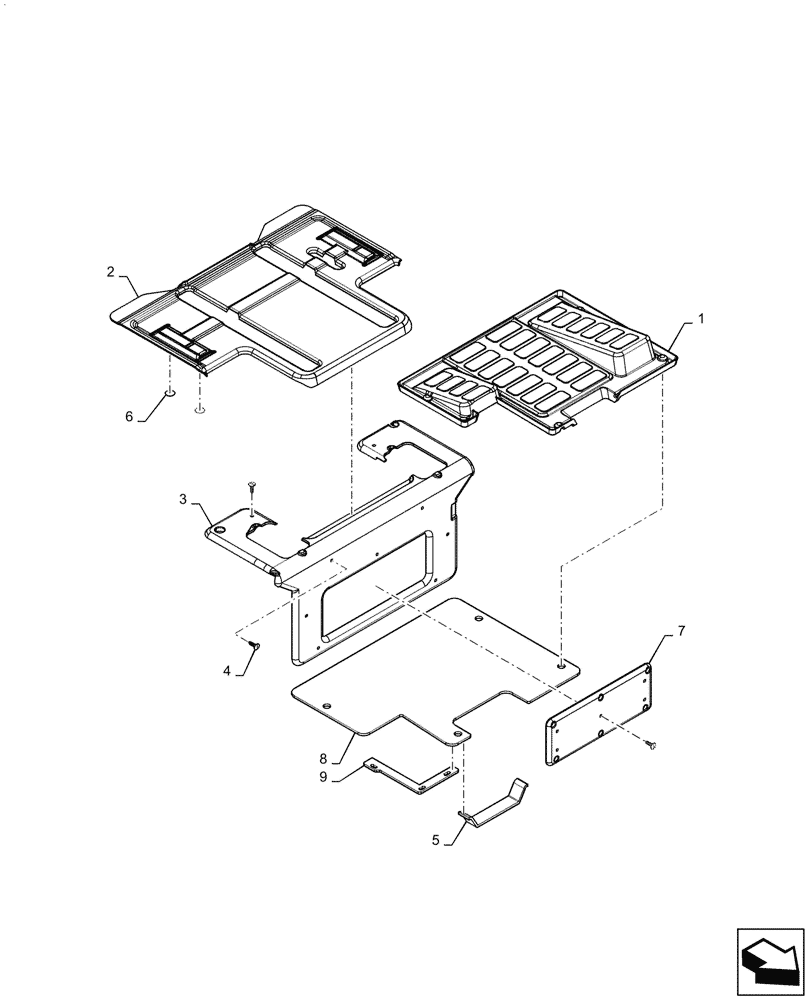

Схема запчастей Case IH SR150 - (90.160.AR[01]) - FLOOR MAT, MECHANICAL HAND CONTROL (18-SEP-2015 & NEWER) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
4
7
9
1
5
8
6
3

Артикул

Название

Примечание

Количество

1

47916207

FLOOR MAT

Trim

1шт.

2

47912946

FLOOR MAT

Seat Pan

1шт.

3

47912576

FLOOR MAT

Heel Plate

1шт.

4

86620930

FASTENER,Push-In, 1.10" L, Nylon

14шт.

5

84372707

FOAM

Front Door Plate

1шт.

6

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan

4шт.

7

47912580

FLOOR MAT

Heel Plate, Fuse Box Access Panel

1шт.

8

84372627

Floor Plate

FOAM

1шт.

9

84372630

Foot Throttle

FOAM

1шт.

Выбрано товаров: 9
