Запчасти Case IH SR150 (55.302.AG) - BATTERY & CABLE (55) - ELECTRICAL SYSTEMS

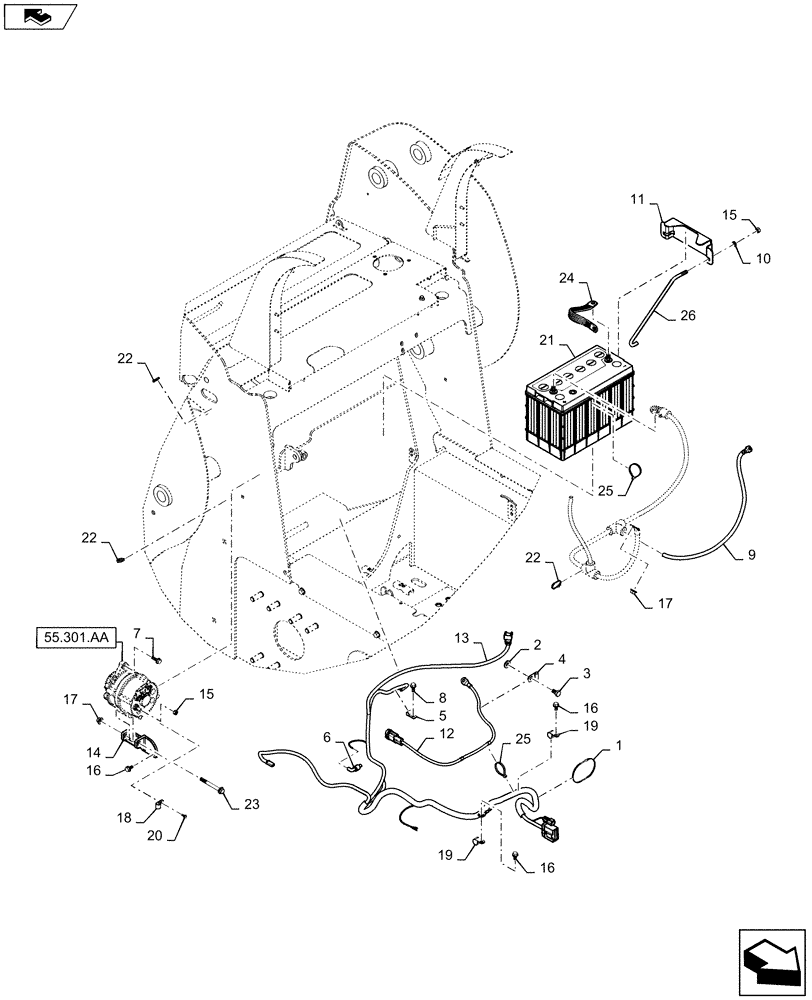

Схема запчастей Case IH SR150 - (55.302.AG) - BATTERY & CABLE (55) - ELECTRICAL SYSTEMS
55.301.aa
16
22
16
7
18
19
2
4
22
5
16
10
25
15
9
12
13
15
19
21
23
3
17
24
17
22
11
6
26
20
home
25
1
8
14

Артикул

Название

Примечание

Количество

1

263117

CABLE TIE,292.1mm L, Nylon, Black

1шт.

2

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

1шт.

3

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

4

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

5

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

6

3917490

TEMPERATURE SENDER

Water

1шт.

7

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

9

47514146

POS BATTERY CABLE

1шт.

10

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

2шт.

11

84420303

STRAP

Battery Mount

2шт.

12

84306339

Glow Plug

ELECTRIC CABLE,644mm L

1шт.

13

84375312

Engine ISM

WIRE HARNESS

1шт.

14

84580649

BRACKET

Alternator Mounting

1шт.

15

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

2шт.

16

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

17

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

18

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

19

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

20

86639263

BOLT,Hex, M5, Cl 8

1шт.

21

B31925SW

WET BATTERY

Battery 12V 105AH

1шт.

22

87642915

CABLE TIE,198mm L

198mm

3шт.

23

87681204

BOLT,Hex, M10 x 90mm, Cl 10.9

Flange, M10 X 90mm

1шт.

24

D140369

GROUND STRAP,260mm L

Ground Strap

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

26

47505880

HOOK

Battery Tie Down

2шт.

Выбрано товаров: 26
