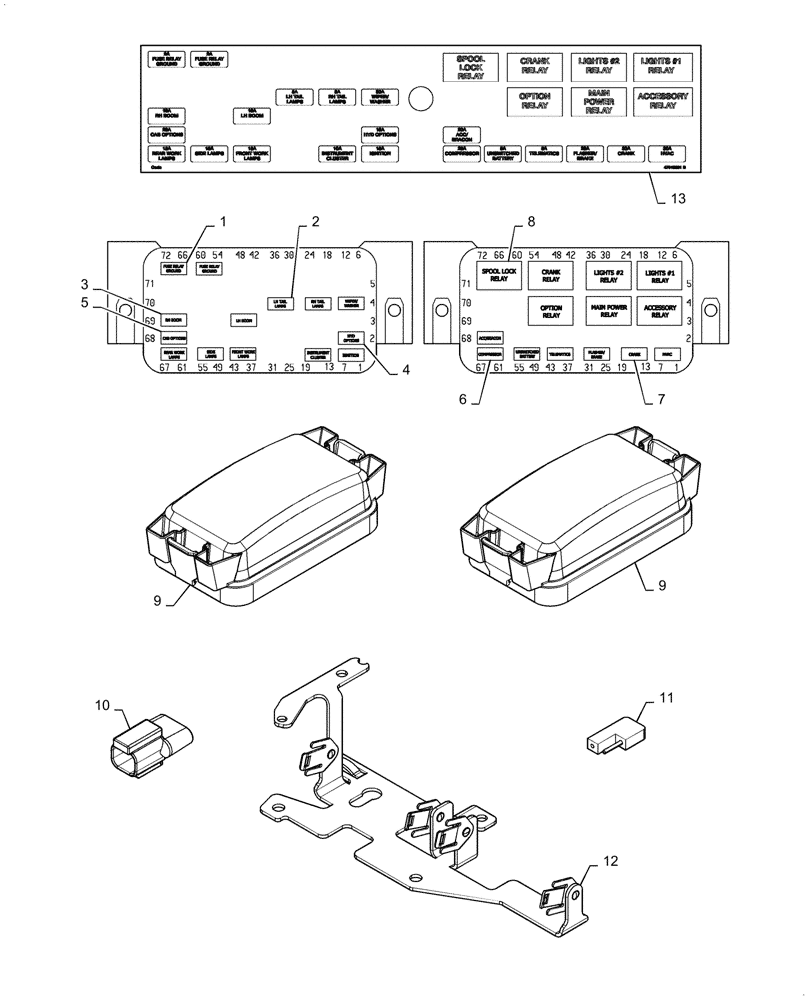

Запчасти Case IH SR150 (55.100.DO[01]) - FUSE & RELAY, MECHANICAL CONTROLS (14-NOV-2016 & NEWER) (55) - ELECTRICAL SYSTEMS

1

84153828

FUSE,2A, Mini, Gray

2шт.

2

84153830

FUSE,5A, Mini, Beige

4шт.

3

84127702

FUSE,10A, Mini, Red

3шт.

4

84127703

FUSE,15A, Mini, Blue

5шт.

5

84127704

FUSE,20A, Mini, Yellow

3шт.

6

84127705

FUSE,25A, Mini, White

1шт.

7

84127708

FUSE,30A, Mini, Green

3шт.

8

87696396

RELAY,12V, 35A, Micro

7шт.

9

84255450

Cover

FUSE BOX

2шт.

10

84535086

Relay

DIODE

1шт.

11

L71879

DIODE ELEMENT,400V, 3A

Ignition Backfeed

1шт.

12

47362403

BRACKET, SUPPORTING

Fuse Box

1шт.

13

47946331

Fuse Box Layout, Mech

DECAL

1шт.
