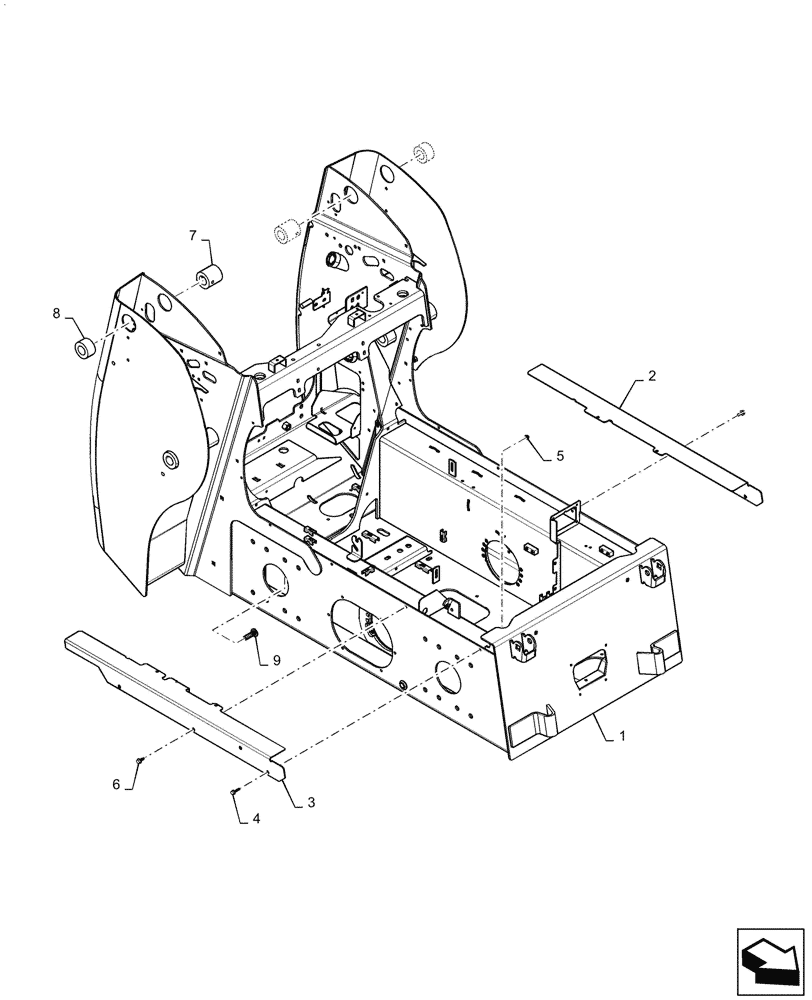

Запчасти Case IH SR150 (39.100.AB) - FRAME, CHASSIS (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

Chassis, Tan

1шт.

2

84404060

LH, Cab, Tan

SKIRT

1шт.

3

84404067

RH, Cab, Tan

SKIRT

1шт.

4

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

6

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

7

84331416

Boss, Boom Pivot

HUB

2шт.

8

84201040

Boss, Boom Pivot

HUB

2шт.

9

84162937

STUD,M16 x 50mm, Cl 9.8

32шт.
