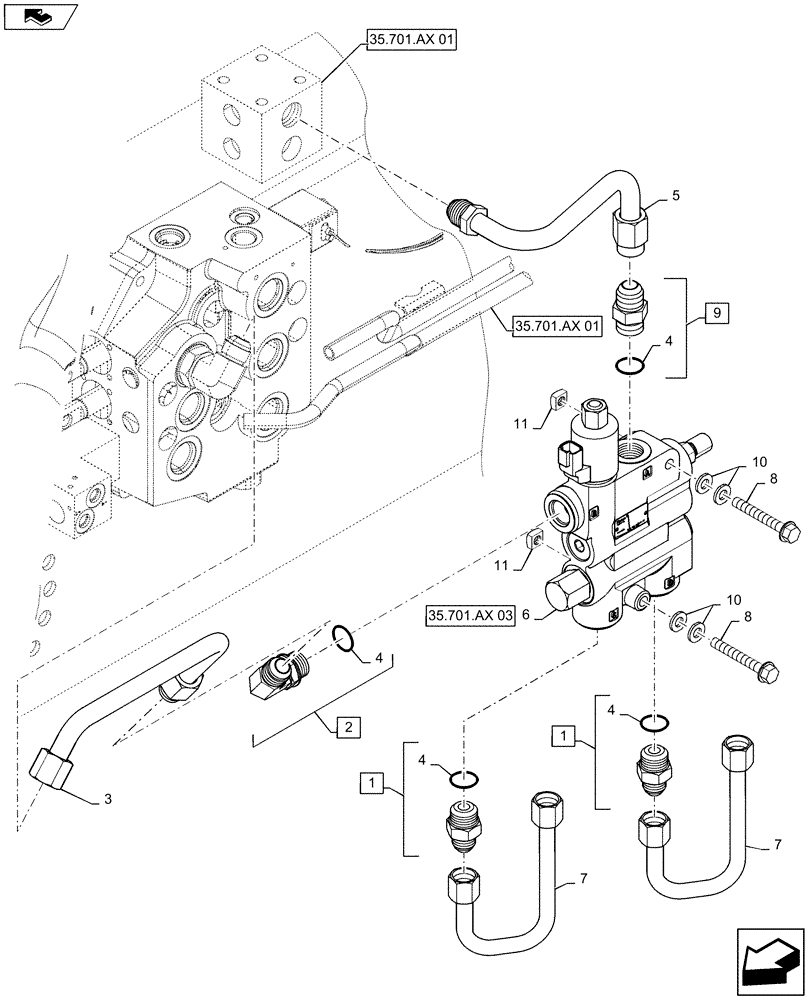

Запчасти Case IH SR150 (35.701.BU[02]) - BUCKET SELF LEVELING (35) - HYDRAULIC SYSTEMS

1

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Incl 4

2шт.

2

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

Incl 4

1шт.

3

84186140

RIGID TUBE

Loader Valve To Self Leveling Valve

1шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

5

84293502

Self Leveling Valve To Manifold

HYD TUBE

1шт.

6

84326479

Bucket Self Level

VALVE

1шт.

7

84335149

Self Leveling Valve To Bucket Tip Lines

TUBE

2шт.

8

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

9

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

7/8" - 14 , 37° JIC x 7/8" - 14 ORB, Incl 4

1шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

11

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.
