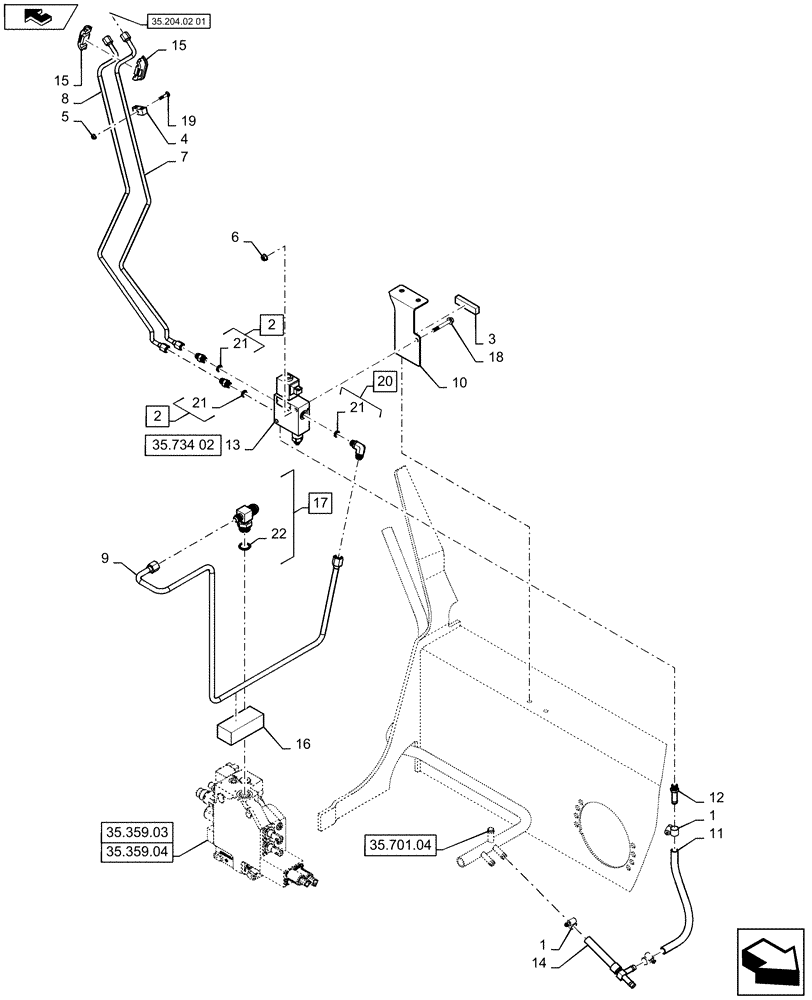

Запчасти Case IH SR150 (35.734.AH[03]) - HYDRAULIC COUPLER CHASSIS PLUMBING SR130, SR150 (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

3шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

2шт.

3

291308

SEALING STRIP,0.75" W x 0.5" Thick

1шт.

4

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double

1шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

7

47424528

Hydraulic Coupler Valve To Boom Arm

HYD TUBE

1шт.

8

47424530

Hydraulic Coupler Valve To Boom Arm

HYD TUBE

1шт.

9

47424532

Hydraulic Coupler Valve To Loader Valve

HYD TUBE

1шт.

10

47425126

Hydraulic Coupler Valve Support

BRACKET

1шт.

11

47455023

Coupler Drain

HYDRAULIC HOSE,12.7mm ID x 350mm L

1шт.

12

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

13

84256406

HYDRAULIC VALVE

Coupler

1шт.

14

84259682

Option, Years: -24-AUG-15

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

14

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

, Start Year: 25-AUG-15

1шт.

15

84277054

Tubes

BRACKET, SUPPORTING

2шт.

16

84366329

Chassis

FOAM INSULATION,40.5mm W x 118.3mm OAL x 50mm Thick

1шт.

17

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

3/4" - 16, JIC x 1-1/16"-12 , JIC x 1-1/16"-12 ORB, Incl 22

1шт.

18

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

19

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

1шт.

20

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl 21

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16" ORB

3шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16" ORB

1шт.
