Запчасти Case IH SR150 (35.734.AH[02]) - HYDRAULIC COUPLER BOOM ARM PLUMBING TAN SR130, SR150 (35) - HYDRAULIC SYSTEMS

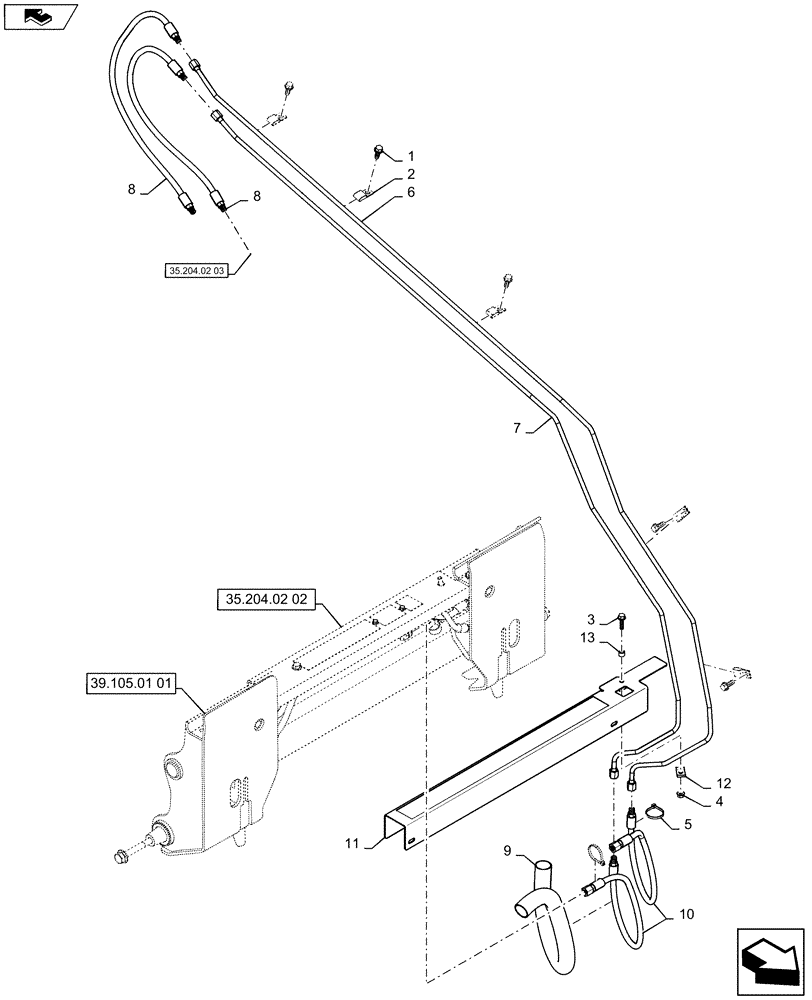

Схема запчастей Case IH SR150 - (35.734.AH[02]) - HYDRAULIC COUPLER BOOM ARM PLUMBING TAN SR130, SR150 (35) - HYDRAULIC SYSTEMS
home
4
35.204.02 03
5
10
7
11
6
3
8
35.204.02 02
12
9
8
1
39.105.01 01
13
2

Артикул

Название

Примечание

Количество

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

5шт.

2

605025

CLAMP,3/8", Coated, 3/8" Bolt

Insulated, 9.5mm

5шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

8" Nylon

2шт.

6

47424227

Boom Arm

HYD TUBE

1шт.

7

47424229

Boom Arm

HYD TUBE

1шт.

8

47424534

Chassis To Boom Arm

HYDRAULIC HOSE,6.35mm ID x 690mm L, SAE 100R17

2шт.

9

47425136

Hydraulic Coupler Hose

TUBE

1шт.

10

47454843

Boom Tubes To Hydraulic Coupler

HYDRAULIC HOSE,6.35mm ID x 635mm L, SAE 100R17

2шт.

11

47475398

Cross Member, Tan

STEP

1шт.

12

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

13

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

Hose Clamp

1шт.

Выбрано товаров: 13
