Запчасти Case IH SR150 (35.734.AH[02]) - AUX HYD, STD, ARM PLUMBING (SR130,SR150) (35) - HYDRAULIC SYSTEMS

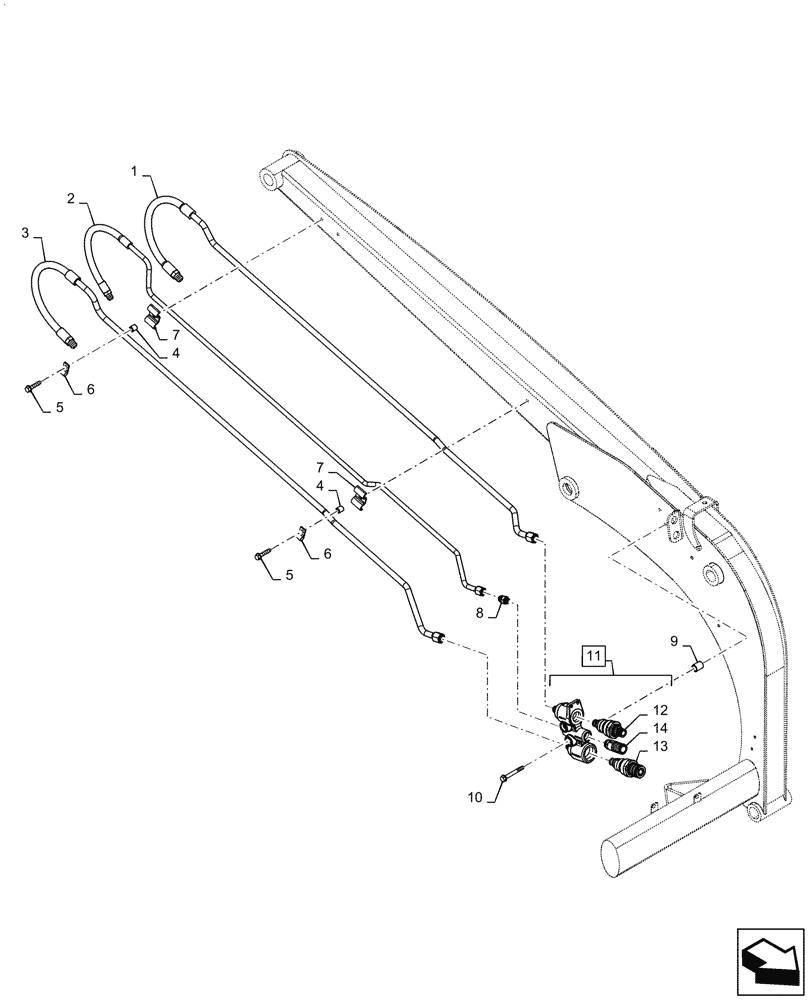

Схема запчастей Case IH SR150 - (35.734.AH[02]) - AUX HYD, STD, ARM PLUMBING (SR130,SR150) (35) - HYDRAULIC SYSTEMS
4
14
3
2
11
5
12
4
13
5
7
9
10
1
6
6
7
8

Артикул

Название

Примечание

Количество

1

84383238

Assembly, Hyd Aux, Male

RIGID TUBE

1шт.

2

84383241

Assembly, Hyd Aux, Female

HYDRAULIC HOSE

1шт.

3

84349310

Assembly, Hyd, Case Drain

HYD TUBE

1шт.

4

87340800

SPACER,5/8" Tube x 15.88mm

5/8 Tube

2шт.

5

87030530

SELF-TAP SCREW,HWH, 3/8" - 16 x 1-3/4"

3/8 X 1.75 TT HW ZND

2шт.

6

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

7

84252828

CLAMP,65.2mm L

Butterfly Tube

2шт.

8

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

1шт.

9

87013910

SPACER,1/2" Pipe x 1"

2шт.

10

84382748

3/8-16 X 3.5 TT ZND

SCREW,HWH, 3/8" - 16 x 3-1/2"

2шт.

11

84173613

Quick Attach, Incl 12-14, Years: -01-FEB-13

VALVE

1шт.

11

47396759

VALVE

Quick Attach, Incl 12-14, Start Year: 01-FEB-13

1шт.

12

84390117

1/2" Male Incl in 11, Years: -01-FEB-13

COUPLING

1шт.

12

47396760

COUPLING,1/2" Male

1/2" Male, Incl in 11, Start Year: 01-FEB-13

1шт.

13

84390118

1/2" Female, Incl in 11, Years: -01-FEB-13

COUPLING

1шт.

13

47396761

COUPLING,1/2" Female

1/2" Female, Incl in 11, Start Year: 01-FEB-13

1шт.

14

84390119

3/8" Female, Incl in 11, Years: -01-FEB-13

COUPLING

1шт.

14

47396762

COUPLING,3/8" Female

3/8" Female, Incl in 11, Start Year: 01-FEB-13

1шт.

Выбрано товаров: 18
