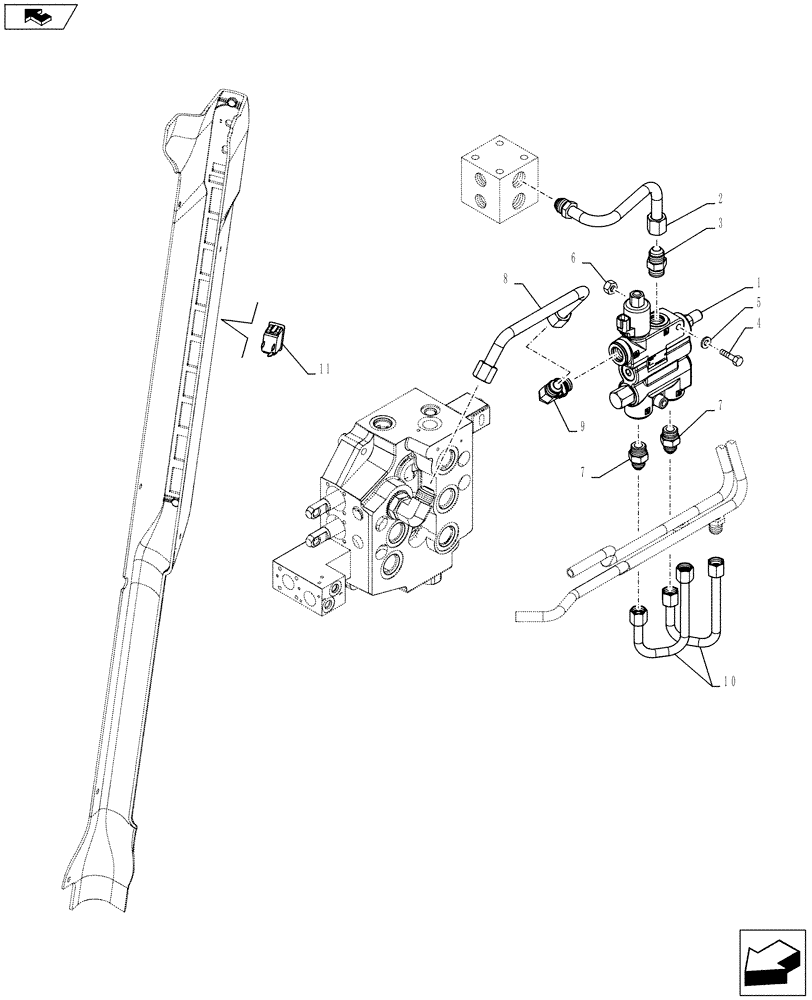

Запчасти Case IH SR150 (35.701.BU[02]) - SELF LEVELING SM FRM (SR130,SR150) (35) - HYDRAULIC SYSTEMS

1

84326479

40 Self Level

VALVE

1шт.

2

84293502

Assembly, Lower, Serial Range: SL-Manifold

HYD TUBE

1шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

37FL X ORB -10

1шт.

4

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

5

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

2шт.

7

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

8

84186140

RIGID TUBE

Assembly, Lower, LDR, Serial Range: Valve-SL

1шт.

9

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

10

84335149

Assembly, SL, Serial Range: Valve-Tip

TUBE

2шт.

11

84271904

SWITCH

Rocker, Self Leveling

1шт.
