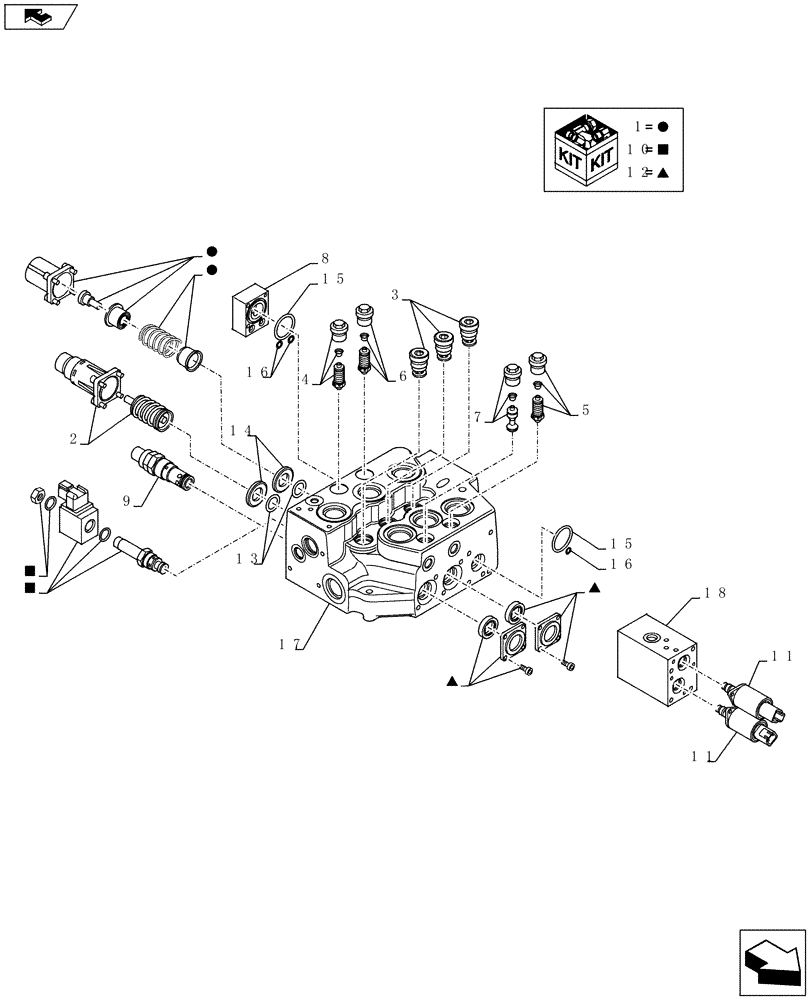

Запчасти Case IH SR150 (35.355.AH) - CONTROL VALVE, MECHANICAL HAND EH AUX (SR130-SV300) (35) - HYDRAULIC SYSTEMS

84279514

Loader Control, Mechanical Hand Controls

HYDRAULIC VALVE

1шт.

1

84386277

KIT

Hand Bucket Spring

1шт.

2

84386278

KIT

Hand Boom Spring

1шт.

3

84386281

CHECK VALVE

Load, Incl O-Ring

3шт.

4

84386282

VALVE PRESSURE RELIE

225 BAR Port Relief

1шт.

5

84386283

230 BAR Port Relief

VALVE PRESSURE RELIE

1шт.

6

84386284

240 BAR Port Relief

VALVE PRESSURE RELIE

1шт.

7

84386285

HYDRAULIC VALVE

Anti-Cavitation

1шт.

8

84386286

CAP

EH Aux End

1шт.

9

84386287

VALVE PRESSURE RELIE

207 BAR Port Relief

1шт.

10

84386288

HYDRAULIC VALVE

PLV Cartridge

1шт.

11

84386289

VALVE, PRESSURE CONT

Reducing

2шт.

12

84386290

KIT

Spool Wiper

3шт.

13

84386291

O-RING

Spool

4шт.

14

84386292

BACK-UP RING

Spool

4шт.

15

84386293

O-RING

EH Spool Cap

2шт.

16

84386294

O-RING

EH Passage

3шт.

17

84279514

Mechanical Hand Control/Electro-Hydraulic Aux, Includes Ref. 1-16, Exclude Kits

HYDRAULIC VALVE

1шт.

18

NSS

NOT SOLD SEPARAT

Incl in P/N 84279514

1шт.

19

84598799

VALVE

100 BAR Port Relief

1шт.
