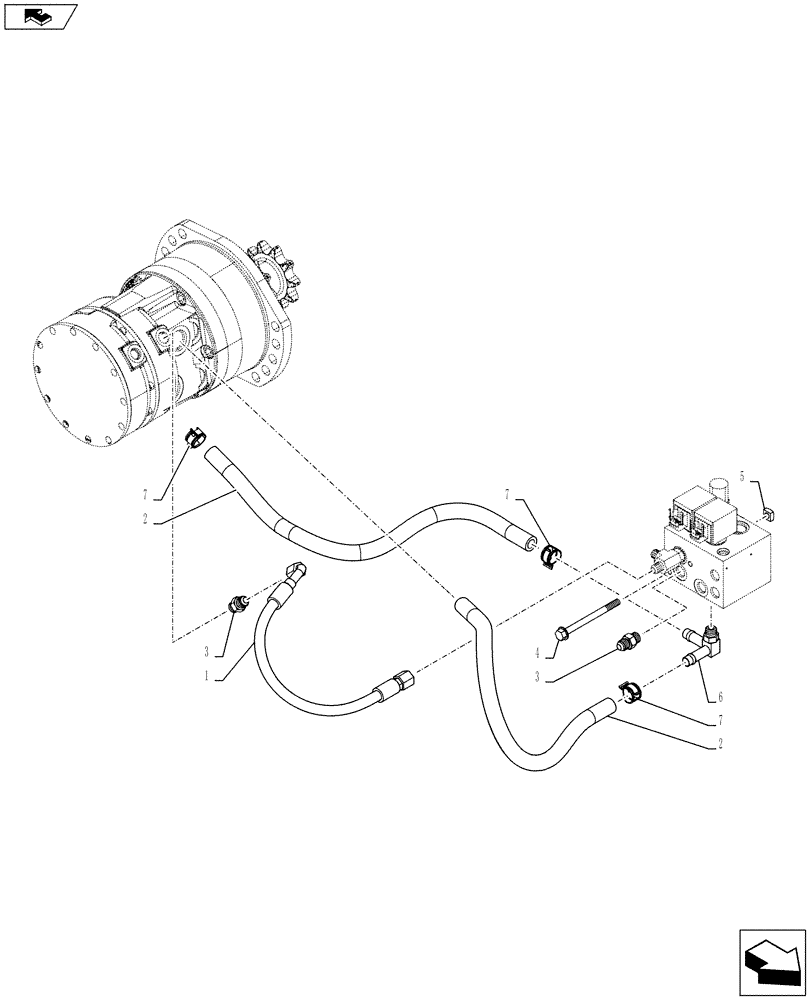

Запчасти Case IH SR150 (35.353.AE[01]) - BRAKE PLUMBING (SR130 - SV300) (35) - HYDRAULIC SYSTEMS

1

84257177

Brake

HOSE ASSY.,6.35mm ID x 420.8mm L, SAE 100R17

1шт.

2

84257173

Drain

HOSE,12.7mm ID x 570mm L

2шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

4

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

Flange, M8x100

2шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square, M8-1.25

2шт.

6

84187294

Fitting

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

1шт.

7

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

4шт.
