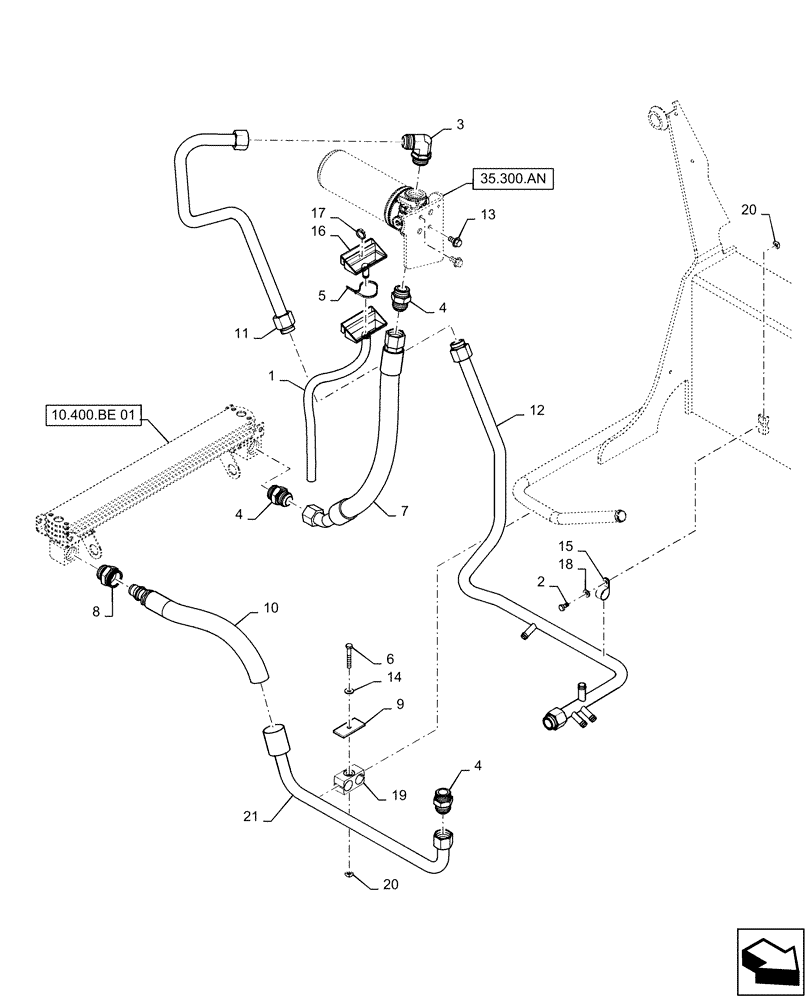

Запчасти Case IH SR150 (35.100.AB) - HYDRAULIC RETURN PLUMBING (SR130,SR150) (35) - HYDRAULIC SYSTEMS

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

3шт.

5

646223

STRAP,8.0" L

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

7

47463835

HYDRAULIC HOSE,25mm ID x 660mm L x 1-5/16" - 12 x 1-5/16" - 12

Oil Cooler Outlet,Straight, 45° Elbow

1шт.

8

84259488

Low Pressure Quick Lok

ADAPTER,1-5/16" - 12 ORB x -16 Female Quick Lok

1шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

1шт.

10

47539986

Loader Valve Outlet

HOSE,25.4mm ID x 545mm L, SAE 100R4

1шт.

11

84380634

Hydraulic Filter Return

TUBE

1шт.

12

84536948

RIGID TUBE

Case Drain Manifold

1шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

15

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

16

87455867

FUNNEL

Oil Filter

1шт.

17

87642915

CABLE TIE,198mm L

Nylon Cable Tie

1шт.

18

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

19

225529A1

CLAMP,Dual, 25.4mm ID

Tube Clamp

1шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

21

47539983

Loader Valve Outlet

TUBE

1шт.
