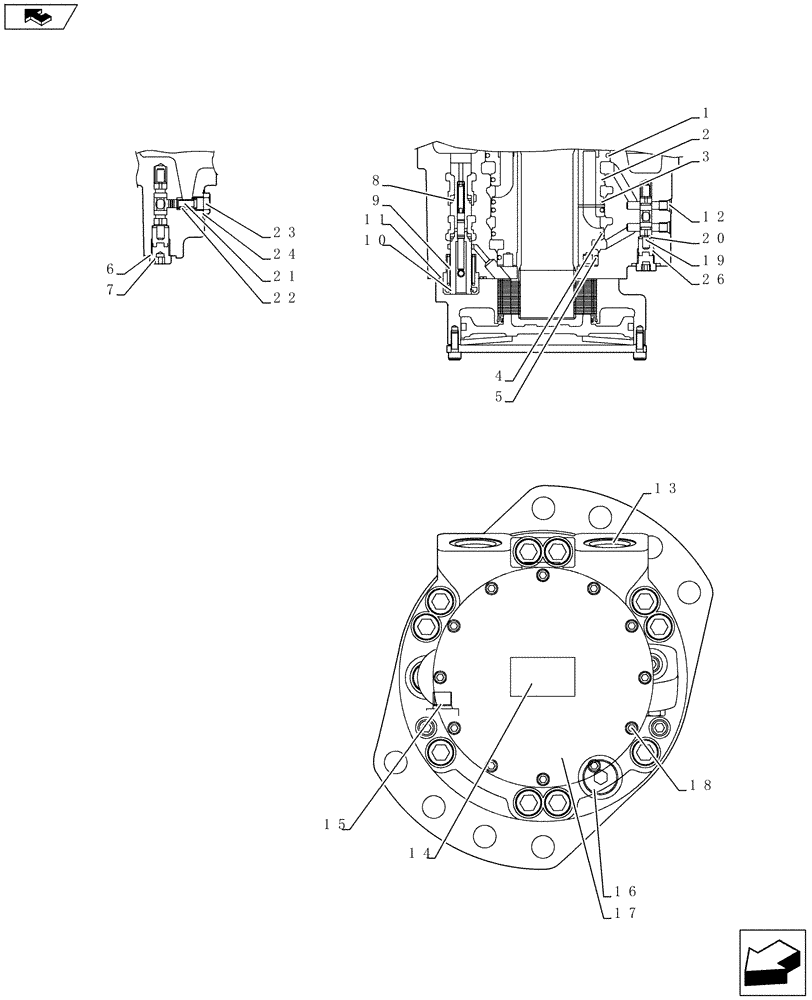

Запчасти Case IH SR150 (29.353.AD[07]) - MOTOR, REXROTH DRIVE MOTOR 1SPD (SR130-SV185) (29) - HYDROSTATIC DRIVE

1

87045007

CASE

MCR3 R/Case D/2W/S0455C

1шт.

2

214389

PLUG,3/4" - 16 ORB

1шт.

3

87045009

PLUG,G3/8" - 19

Flushing Plug G 3/8 - 19

1шт.

4

NSS

NOT SOLD SEPARAT

Shear Plug M8

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring 13.60 X 2.40 FKM90

1шт.

6

NSS

NOT SOLD SEPARAT

CNH Label Bar Coded

1шт.

7

NSS

NOT SOLD SEPARAT

Shipping Plug 1 1/16 - 12

2шт.

8

NSS

NOT SOLD SEPARAT

Shipping Plug 9/16 - 18 UNF

2шт.

9

87042923

COVER

MCR3 End Cover

1шт.

10

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

12шт.

11

87042928

SPOOL

Flushing

1шт.

12

87042929

WASHER

11.9 X 6.3 X 1.5 THK

1шт.

13

87042931

POPPET,RV 1.7 Orifice

Flushing

1шт.

14

87042932

SPRING

Flushing R.V

1шт.

15

87042933

POPPET,Plug, 7/16" SAE

Poppet Plug 7/16 SAE

1шт.

16

84569223

Flushing Poppet (20 Bar)

SHIM,5.5mm ID x 8mm OD x 1.3mm Thk

1шт.

17

87042934

SPRING

Flushing Side A (10 Bar)

1шт.

18

87042935

SPRING

Flushing Side B (10 Bar)

1шт.

19

87039378

KIT

MCR3 Speed Rotation

1шт.

20

84293381

MCR3 1 Speed W Shaft Seal

SEAL KIT

1шт.

21

87039373

KIT

Brake S0471

1шт.
